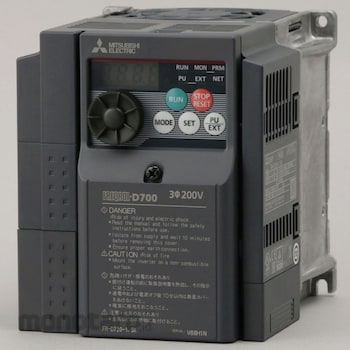

Mitsubishi Electric Inverter FREQROL-D700 Series (3-Phase 200V) (Inverter Drive Kecepatan Variabel) FR-D720-1.5K 1unit
Rp4.499.900
Persediaan
Spesifikasi Produk
| Model Number | FR-D720-1.5K |
|---|---|
| Unit | 1unit |
| Dimension D1 (mm) | 60 |
| Starting Torque | 150% or more (at 1 Hz) When slip correction is set by general-purpose magnetic flux vector control |
| Cooling Method | Forced air cooling |
| Altitude (m) | Below sea level 1000 |
| Vibration (m/s²) | 5.9 or less |
| Output voltage (V) | 3-phase 200 to 240 |
| Storage Temperature Range (°C) | -20 to 65 |
| Approximate mass (kg) | 1.4 |
| AC voltage allowable fluctuation (V) | 170 to 264 |
| Dimensions d (mm) | 135.5 |
| Power Supply Capacity (kVA) | 4 |
| Frequency Setting Resolution | Analog input. 0.06Hz/60Hz (Terminals 2, 4:0 to 10V/10bit), 0.12Hz/60Hz (Terminals 2, 4:0 to 5V/9bit), 0.06Hz/60Hz (Terminals 4:0 to 20mA/10bit). Digital input. 0.01Hz |
| Control System | Soft-PWM control/high carrier frequency PWM control (V/F control, general-purpose magnetic flux vector control, optimal excitation control can be selected) |
| Output overload current rating | 150%60s, 200%0.5s (reverse time characteristic) |
| Protective structure (JEM1030) | Closed type (IP20) |
| Dimension W (mm) | 108 |
| Output rated capacity (kVA) | 2.8 |
| M Code | 11100293 |
| Berat (Kg) | 0.7 |
| Tanggal Produk Terdaftar | 05 November 2021 |
| Terakhir Diperbaharui | 02 October 2026 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
New standard for Mitsubishi inverterThe spring clamp terminal (control circuit) realizes high reliability and easy wiring. Equipped with a safety stop function and a hardware cut-off circuit for highly reliable emergency output cut-off.
Equipped with best-in-class performance in a compact body
The general-purpose magnetic flux vector control is installed in a compact body (3.7K or less) that has the same mounting dimensions as the Mitsubishi smallest inverter, the FR-S500 series, and achieves a high torque of 150% (3.7K or less) at 1Hz.
Enhanced functions
Optimal for fan/pump application Excitation control/PID control, Machine tool application for deceleration/stop function during power failure, General purpose magnetic flux vector control for conveyor/food application/Brake resistor connection (0.4K to 15K), etc. It was equipped with.
