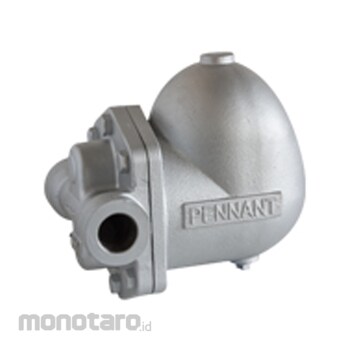

Pennant Ball Float Steam Traps PT65 NPT 1inch 1pc

Cast iron float and thermostatic (internal air vent) steam traps are designed for draining condensate from all types of low and medium pressure steam heating and process equipment. Typical applications include unit heaters, heat exchangers, driers and jacketed vessels. Horizontal installation
AVAILABLE TYPES:
PT 65 - with thermostatic air vent
PT 65S - SLR (with steam lock release)
PT 65C - with thermostatic air vent and SLR.
INSTALLATION:
Horizontal installation with flow from left to right The trap should be installed horizontally below the drain point of the equipment in a position such that the float arm is in a horizontal plane and the float rises and
falls vertically, with the flow direction as indicated on the cover.
The word 'TOP' on the nameplate indicates the top side of the trap.
Max. differential pressure range:
PT65-65 : 65 psi
PT65-145 : 145 psi
PT65-200 : 200 psi
USE:
Saturated and superheated steam
AVAILABLE SPARES:
Valve Seat, Ball Float & Lever Assly., Air Vent Assly., Gaskets
