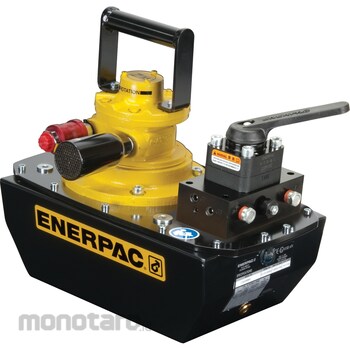

Enerpac Hydraulic Pump, Air, VM43 4L ZA4404MX 1pc

Name: Enerpac Hydraulic Pump, Air, VM43 4L ZA4404MX 1pc
Brand: Enerpac
SKU: S028019084
Price: 149999900 IDR
Availability: InStock

#Nomor SKU S028019084

Enerpac

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	ZA4404MX
Unit	1pc
Maximum Operating Pressure (bar)	700
Cylinder Compatability	Double-acting
Reservoir Capacity (cm³)	4000
Usable Oil Capacity (L)	1.3
Maximum Flow at Rated Pressure (L/minute)	1.3
Output Flow Rate (L/minute)	14.0 at 7bar, 11.0 at 50bar, 1.8 at 350bar, 1.3 at 700bar
Valve Function	Advance / Hold / Retract
Valve Operation	Manual
Valve Type	3-way, 2-position
Valve Model	VM43
Power Source	Air
Air Consumption (L/minute)	2840
Sound Level (dBA)	94-97
Relief Valve Adjustment Range (bar)	70 - 700
Dimension A (inch)	11.6
Dimension B (inch)	5.6
Dimension C (inch)	11
Dimension D (inch)	6
Dimension E (inch)	15.4
Berat (Kg)	43.2
Tanggal Produk Terdaftar	06 May 2021
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Product Lines : Industrial Tools
- Features Z-Class high efficency pump design, higher oil flow and bypass pressure
- Two-speed operation and high by-pass pressure reduces cycle time for improved productivity
- Internal relief valves. One is factory set for overload protection while the second is user adjustable for pre-setting maximum system pressure
- Sight gauge on 1 and 2 gallon and level gauge on 2.5, 5 and 10 gallon reservoirs allow quick and easy oil level monitoring
- Optional heat exchanger warms exhaust air to prevent feezing and cools the oil
