Product Lines : Industrial Tools
- Features Z-Class high efficency pump design, higher oil flow and bypass pressure
- Two-speed operation and high by-pass pressure reduces cycle time for improved productivity
- Internal relief valves. One is factory set for overload protection while the second is user adjustable for pre-setting maximum system pressure
- Sight gauge on 1 and 2 gallon and level gauge on 2.5, 5 and 10 gallon reservoirs allow quick and easy oil level monitoring
- Optional heat exchanger warms exhaust air to prevent feezing and cools the oil

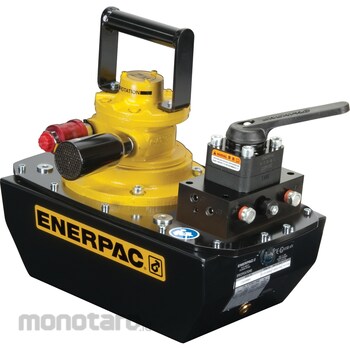

Enerpac Hydraulic Pump, Air, VM43 4L
#Grup produk P105576356
Spesifikasi
| Maximum Operating Pressure (bar) | 700 |
|---|---|
| Cylinder Compatability | Double-acting |
| Reservoir Capacity (cm³) | 4000 |
| Usable Oil Capacity (L) | 1.3 |
| Maximum Flow at Rated Pressure (L/minute) | 1.3 |
| Dimension A (inch) | 11.6 |
| Dimension B (inch) | 5.6 |
| Air Consumption (L/minute) | 2840 |
| Dimension C (inch) | 11 |
| Dimension D (inch) | 6 |
| Dimension E (inch) | 15.4 |
| Output Flow Rate (L/minute) | 14.0 at 7bar, 11.0 at 50bar, 1.8 at 350bar, 1.3 at 700bar |
| Power Source | Air |
| Relief Valve Adjustment Range (bar) | 70 - 700 |
| Sound Level (dBA) | 94-97 |
| Valve Function | Advance / Hold / Retract |
| Valve Model | VM43 |
| Valve Operation | Manual |
| Valve Type | 3-way, 2-position |
