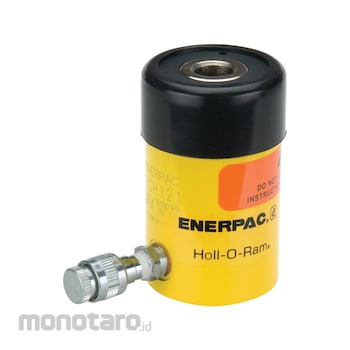

Enerpac Hydraulic Cylinder 12 Ton (Single Acting) Hollow Plunger RCH120 1pc

Name: Enerpac Hydraulic Cylinder 12 Ton (Single Acting) Hollow Plunger RCH120 1pc
Brand: Enerpac
SKU: S028016373
Price: 12999900 IDR
Availability: InStock

#Nomor SKU S028016373

Enerpac

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	RCH120
Unit	1pc
Maximum Operating Pressure (bar)	700
Capacity Class (tonnage)	12
Maximum Cylinder Capacity Advance (kN)	125
Stroke (mm)	8
Collapsed Height A (mm)	55
Extended Height B (mm)	63
Return Type	Single-Acting, Spring Return
Plunger Type	Hollow
Material	Steel
Cylinder Effective Area Advance (cm²)	17.9
Oil Capacity Advance (cm³)	14
Surface Treatment	Paint
Outside Diameter D (mm)	69
Cylinder Bore Diameter E (mm)	54.1
Plunger Diameter F (mm)	19.0
Top to Inlet Port H (mm)	45
Plunger Thread Length P (mm)	28
Plunger External Thread Q (mm)	24 (11/16inch)
Base Mounting Holes Thread V	3/4" - 14 NPT
Collar Thread Size W	1 1/2" - 16 UN
Berat (Kg)	1.4
Tanggal Produk Terdaftar	06 May 2021
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Product Lines : Industrial Tools
- Hollow plunger design allows for both pull and push forces
- Single-acting spring return
- Nickel-plated, floating center tube on models over 20 tons increases product life
- Baked enamel finish for increased corrosion resistance
- Collar threads for easy fixturing
- Includes AR630 coupler and has 1/4 NPTF port
