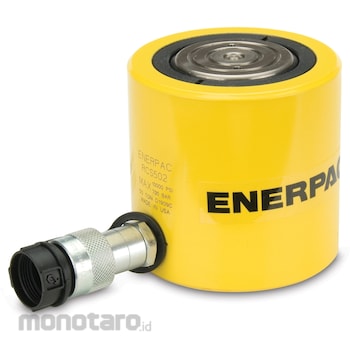

Enerpac Hydraulic Cylinder (Single Acting) RCS502 50 Ton 1pc

Name: Enerpac Hydraulic Cylinder (Single Acting) RCS502 50 Ton 1pc
Brand: Enerpac
SKU: S028015956
Price: 21999900 IDR
Availability: InStock

#Nomor SKU S028015956

Enerpac

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	RCS502
Unit	1pc
Maximum Operating Pressure (bar)	700
Capacity Class (tonnage)	50
Maximum Cylinder Capacity Advance (kN)	435
Stroke (mm)	60
Collapsed Height A (mm)	122
Extended Height B (mm)	182
Return Type	Single-Acting, Spring Return
Plunger Type	Solid
Material	Steel
Cylinder Effective Area Advance (cm²)	62.1
Oil Capacity Advance (cm³)	373
Surface Treatment	Paint
Outside Diameter D (mm)	124
Cylinder Bore Diameter E (mm)	88.9
Plunger Diameter F (mm)	69.8
Base to Advance Port H (mm)	19
Saddle Protrusion from Plunger K1 (mm)	2
Plunger To Base L (mm)	57
Plunger To Mounting Hole M (mm)	53
Base Mounting Hole Pitch U (mm)	66.5
Berat (Kg)	10.0
Tanggal Produk Terdaftar	06 May 2021
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Product Lines : Industrial Tools
- Lightweight, low profile design for use in confined spaces
- Baked enamel finish for increased corrosion resistance
- Plunger wiper reduces contamination, extending cylinder life
- CR-400 coupler and dust cap included on all models
- Grooved plunger end with threaded holes for mounting tilt saddles
- Plated steel plungers
- Single-acting spring return
