SIEMENS Industrial Ethernet FC TP Standard Cable 6XV1840-2AH10 1pc(20m)

Name: SIEMENS Industrial Ethernet FC TP Standard Cable 6XV1840-2AH10 1pc(20m)
Brand: SIEMENS
SKU: S025013634
Price: 1699900 IDR
Availability: InStock

#Nomor SKU S025013634

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	6XV1840-2AH10
Unit	1pc(20m)
Suitability for Use	Standard cable with rigid cores for fast installation

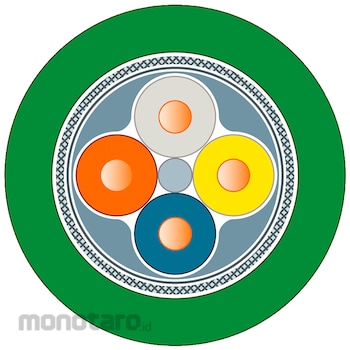

Cable Designation	2YY (ST) CY 2x2x0,64/1,5-100 GN SF/UTP
Attenuation Factor per Length at 10MHz/Maximum (dB/m)	0.052
Attenuation Factor per Length at 100MHz/Maximum (dB/m)	0.195
Core Diameter of AWG22 Insulated Conductor (mm)	0.64
Outer Diameter of Inner Conductor (mm)	0.64
Outer Diameter of the Wire Insulation (mm)	1.5
Outer Diameter of the Inner Sheath of the Cable (mm)	3.9
Outer Diameter of Cable Sheath (mm)	6.5
Material of the Wire Insulation	polyethylene (PE)
Material of the Inner Sheath of the Cable	PVC
Material of Cable Sheath	PVC
Color of the Insulation of Data Wires	white/yellow/blue/orange
Color of Cable Sheath	green
Standard for Structured Cabling	CAT 5E CAT 5E
Weight per Length (kg/km)	61
Overall Length (m)	100 (for Industrial Ethernet with 100BaseTX)
Net Weight (kg)	0.063
Packaging Dimension (WxLxH) (cm)	1x07x1
Product Class	C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
Berat (Kg)	0.6
Tanggal Produk Terdaftar	29 December 2020
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Industrial Ethernet FC TP Standard cable, GP 2x2 (PROFINET Type A), TP installation cable for connection to IE FC RJ45 2x2, for universal use, 4-core, shielded CAT 5E, sold by the meter, delivery length max. 4000 m minimum order 20 m
