SIEMENS Industrial Ethernet FC TP Standard Cable
#Grup produk P105196196
Sebelum PPN:
Rp1.699.900 - Rp2.699.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Attenuation Factor per Length at 100MHz/Maximum (dB/m) | 0.195 |
|---|---|
| Core Diameter of AWG22 Insulated Conductor (mm) | 0.64 |
| Outer Diameter of Inner Conductor (mm) | 0.64 |
| Overall Length (m) | 100 (for Industrial Ethernet with 100BaseTX) |
| Attenuation Factor per Length at 10MHz/Maximum (dB/m) | 0.052 |

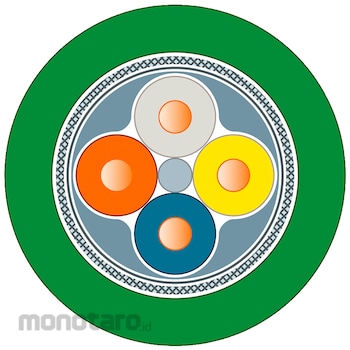

| Cable Designation | 2YY (ST) CY 2x2x0,64/1,5-100 GN SF/UTP |
| Color of Cable Sheath | green |
| Color of the Insulation of Data Wires | white/yellow/blue/orange |
| Material of Cable Sheath | PVC |
| Material of the Inner Sheath of the Cable | PVC |
| Material of the Wire Insulation | polyethylene (PE) |
| Outer Diameter of Cable Sheath (mm) | 6.5 |
| Outer Diameter of the Inner Sheath of the Cable (mm) | 3.9 |
| Outer Diameter of the Wire Insulation (mm) | 1.5 |
| Standard for Structured Cabling | CAT 5E CAT 5E |
| Suitability for Use | Standard cable with rigid cores for fast installation |
| Weight per Length (kg/km) | 61 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Industrial Ethernet FC TP Standard cable, GP 2x2 (PROFINET Type A), TP installation cable for connection to IE FC RJ45 2x2, for universal use, 4-core, shielded CAT 5E, sold by the meter, delivery length max. 4000 m minimum order 20 m
