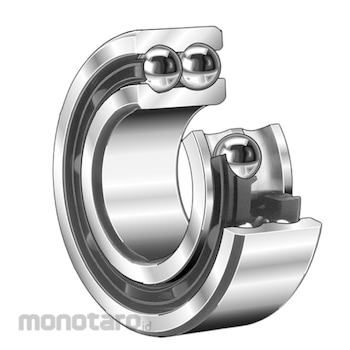

FAG Angular Contact Ball Bearing Series 3303-BD-XL-TVH-C3 1pc
Rp249.900
Persediaan
Spesifikasi Produk
| Model Number | 3303-BD-XL-TVH-C3 |
|---|---|
| Unit | 1pc |
| Radial Internal Clearance | C3 |
| A (mm) | 27.5 |
| da min (mm) | 22.6 |
| m (kg) | 0.177 |
| nG (1/minute) | 16600 |
| Reference Speed | 12600 |
| ra max (mm) | 1 |
| r min (mm) | 1 |
| α (°) | 30 |
| C0r (N) | 13100 |
| Cr (N) | 22500 |
| Cur (N) | 910 |
| D1 (mm) | 39.0 |
| Da max (mm) | 41.4 |
| Width B (mm) | 22.2 |
| Inner Diameter d (mm) | 17 |
| Outer Diameter d (mm) | 47 |
| Berat (Kg) | 0.7 |
| Tanggal Produk Terdaftar | 17 November 2020 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Peringatan
Foto produk hanya representasi. Mohon mengacu pada model number, ukuran dan spesifikasi untuk aktual produk.Warning
Representative product photo. Please refer to model number, size and specification for actual product.Feature
Type of suffixes for Double row angular contact ball bearingsB : Modified internal construction, nominal contact angle ﾎｱ = 25ﾂｰ, without filling slot
BD : Modified internal construction, nominal contact angle ﾎｱ = 30ﾂｰ, without filling slot
C2 : Axial internal clearance C2 (smaller than normal)
C3 : Axial internal clearance C3 (larger than normal)
C4 : Axial internal clearance C4 (larger than C3)
DA : Inner ring split, nominal contact angle ﾎｱ = 45ﾂｰ
M : Solid brass cage, ball-guided
MA : Solid brass cage, guided on outer ring
TVH : Solid cage made from glass fibre reinforced polyamide PA66, ball-guided
2HRS : Contact seal on both sides, axial contact (lip seal)
2RS : Contact seal on both sides, axial contact (lip seal)
2RSR : Contact seal on both sides, radial contact (lip seal)
2RZ : Non-contact seal on both sides (rubberised gap seal)
2Z : Non-contact sealing shield on both sides (sheet metal gap seal)
HRS : Contact seal on one side, axial contact (lip seal)
RS : Contact seal on one side, axial contact (lip seal)
RSR : Contact seal on one side, radial contact (lip seal)
RZ : Non-contact seal on one side (rubberised gap seal)
Z : Non-contact sealing shield on one side (sheet metal gap seal)
XL : X-life bearing, dependent on bore code and bearing type
Type of suffixes for Single row angular contact ball bearings
B : Modified internal construction, nominal contact angle ﾎｱ = 40ﾂｰ
JP : Sheet steel cage
MP : Solid brass cage
TVH, TVP : Solid cage made from glass fibre reinforced polyamide PA66
P5 : Bearing in tolerance class 5
2RS : Contact seal on both sides (lip seal)
UA : Universal design for fitting in pairs, bearing pair has a small axial internal clearance in O and X arrangement
UB : Universal design for fitting in pairs, bearing pair has a smaller axial internal clearance in O and X arrangement than in UA
UH : Universal design for fitting in pairs, bearing pair has a high preload in O and X arrangement
UL : Universal design for fitting in pairs, bearing pair has a light preload in O and X arrangement
UM : Universal design for fitting in pairs, bearing pair has a moderate preload in O and X arrangement
UO : Universal design for fitting in pairs, bearing pair is clearance-free in O and X arrangement
XL : X-life bearing, dependent on bore code and bearing type
