1207 EKTN9
Self-aligning ball bearings
Bearing data
- Tolerances: Normal, JS7
- Radial internal clearance: table
Bearing interfaceS
- Seat tolerances for standard conditions
- Tolerances and resultant fits

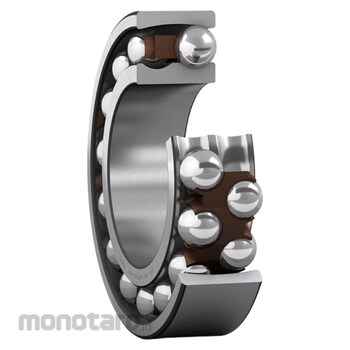

SKF EKTN9 Type Self-Aligning Ball Bearings 1207 EKTN9 with Tapered Bore 1pc
Rp329.900
Persediaan
Spesifikasi Produk
| Model Number | 1207 EKTN9 |
|---|---|
| Unit | 1pc |
| Bore Diameter d (mm) | 35 |
| Outside Diameter D (mm) | 72 |
| Width B (mm) | 17 |
| Basic Dynamic Load Rating C (kN) | 19 |
| Basic Static Load Rating C0 (kN) | 6 |
| Reference Speed (rpm) | 20000 |
| Limiting Speed (rpm) | 13000 |
| Retaining Feature, Inner Ring | None |
| Locating Feature, Bearing Outer Ring | None |
| Number of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Cage | Non-metallic |
| Radial Internal Clearance | CN |
| Tolerance Class | Normal |
| Bearing Material | Bearing steel |
| Coating | Without |
| Sealing | Without |
| Lubricant | None |
| Relubrication Feature | Without |
| Shoulder Diameter Inner Ring d1 (mm) | ≈ 47 |
| Shoulder Diameter Outer Ring D1 (mm) | ≈ 60.9 |
| Chamfer Dimension r1,2 (mm) | min. 1.1 |
| Abutment Diameter Housing Da Max (mm) | max. 65 |
| Fillet Radius ra (mm) | max. 1.1 |
| Fatigue Load Limit Pu (kN) | 0.305 |
| Permissible Angular Misalignment α (°) | 2.5 |
| Limiting Value (e) | 0.23 |
| Berat (Kg) | 1.2 |
| Tanggal Produk Terdaftar | 26 August 2020 |
| Terakhir Diperbaharui | 21 July 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
Image may differ from product. See technical specification for details.Feature
- Ease of mounting via adapter sleeves or withdrawal sleeves- Accommodate static and dynamic misalignment
- Excellent high-speed performance
- Excellent light load performance
- Low friction
