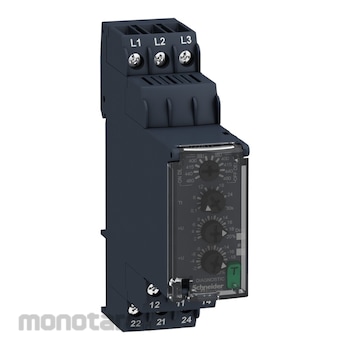

Schneider Electric Zelio Control RM22TR33 Modular 3-phase Control Relay 1pc
Rp1.999.900
Persediaan
Spesifikasi Produk
| Model Number | RM22TR33 |
|---|---|
| Unit | 1pc |
| Range of Product | Zelio Control |
| Product or Component Type | Modular measurement and control relays |
| Relay Type | Control relay |
| Network Number of Phases | 3 phases |
| Relay Name | RM22TR |
| Relay Monitored Parameters | Over voltage and under voltage detection Phase sequence Phase failure detection |
| Time Delay Type | Adjustable 0.1-30 s, +/- 10 % of the full scale value on crossing the threshold Tt |
| Switching Capacity (VA) | 2000 |
| Measurement Range | 380-480 V voltage AC |
| Reset Time (ms) | 1500 at maximum voltage |
| Max. Switching Voltage (V) | 250 AC |
| Min. Switching Current (mA) | 10 at 5 V DC |
| Max. Switching Capacity (A) | 8 AC |
| Rated Supply Voltage (V AC) | 380-480 |
| Supply Voltage Limits | 304-576V AC |
| Operating Limits | -20% + 20% Un |
| Power Consumption (V/A) | 15 at 480 V AC 60 Hz |
| Voltage Detection Threshold | < 100 V AC |
| Supply Voltage Frequency (Hz) | 50-60 (+/-10%) |
| Output Contacts | 2 C/O |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 26 August 2020 |
| Terakhir Diperbaharui | 06 August 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
This Harmony RM22-TR relay allows monitoring of phase and undervoltage/overtage in 3-phase networks. This modular multi function 3-phase control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slim form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a diagnostic button, sealable cover, simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC.
