Mitutoyo Outside Micrometer with Interchangeable Anvil 104-135 OMC-150 1unit
Rp7.499.900
Persediaan
Spesifikasi Produk
| Model Number | 104-135 |
|---|---|
| Unit | 1unit |
| Measuring Range (mm) | 0-150 |
| Dimension A (mm) | M1: 135 M2: 110 M3: 85 M4: 60 M5: 35 M6: 10 |
| Scale Interval (mm) | 0.01 |
| Dimensions c (mm) | phi 18 |
| Mitutoyo Part Number | OMC-150 |
| Type | Replacement anvil type outside |
| Dimension C (mm) | phi 18 |
| Dimension L (mm) | 164.5 |
| Minimum Display/Scale Interval (mm) | 0.01 |
| Instrument Error (µm) | +/- (4 + maximum measurement length/75) (rounded up) |
| Reference Rod (Book) | 3 |
| Flatness (µm) | 0.6 |
| Parallelism (µm) | 3 |
| Micrometer Head Stroke (mm) | twenty five |
| Dimension B (mm) | 93 |
| Series | 104 |
| Dimension I (mm) | M1: 0 M2: 25 M3: 50 M4: 75 M5: 100 M6: 125 |
| Number of Replacement Anvils (Books) | 6 |
| TRUSCO Number | 310-6411 |
| M Code | 01994973 |
| Berat (Kg) | 1.5 |
| Tanggal Produk Terdaftar | 26 August 2020 |
| Terakhir Diperbaharui | 01 December 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
This Product Exclude Calibration CertificateFeature

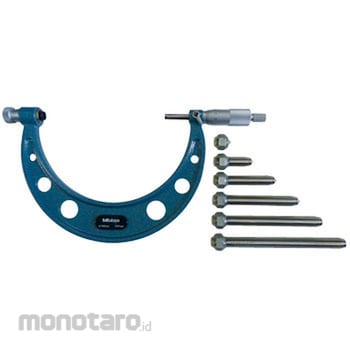

- By replacing the anvil, the measurement range can be expanded with one main unit. - The standard product has a cemented carbide tip only on the spindle surface. - With constant pressure device.
