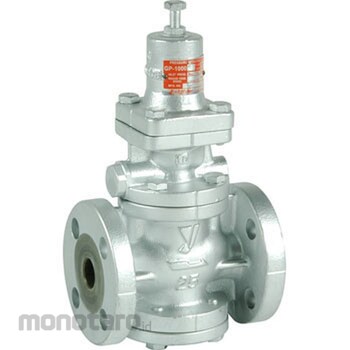

Yoshitake Pressure Reducing Valve (For Steam) Gp-1000 Series GP-1000-15 1pc
Rp6.899.900
Persediaan
Spesifikasi Produk
| Model Number | GP-1000-15 |
|---|---|
| Unit | 1pc |
| Secondary Pressure Gauge (MPa) | 0.05-0.9 / 90% or less of primary pressure (gauge pressure) |
| Material (Piston/Cylinder) | Brass or bronze |
| Color | Silver |
| Nominal Diameter B | 1/2 |
| Maximum Decompression Ratio | 0.834027777777778 |
| Dimension L (mm) | 150 |
| Body Material | Spheroidal graphite cast iron (FCD450) |
| Material (Valve Element/Valve Seat) | Stainless steel |
| Mass (kg) | 8 |
| Dimension H (mm) | 285 |
| Dimension H1 (mm) | 64 |
| Type | Pilot type piston |
| format | Pilot type piston |
| Inlet Pressure (MPa) | 0.1-1.0 |
| Valve Seat Leakage | 0.01% or less of the rated flow |
| Maximum Temperature (°C) | 220 |
| Applicable Fluid | steam |
| Nominal Diameter A | 15 |
| Connection | JIS 10K FF flange |
| Minimum Differential Pressure (MPa) | 0.05 |
| TRUSCO Number | 382-3172 |
| M Code | 38848862 |
| Berat (Kg) | 10.0 |
| Tanggal Produk Terdaftar | 28 January 2020 |
| Terakhir Diperbaharui | 21 October 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Operability and durability have been greatly improved compared to conventional pressure reducing valves. The main valve has a spherical shape, so it has excellent sealing performance and the amount of valve seat leakage has been significantly reduced. (Compatible with ANSI class II) Complies with SHASE-S106 pressure reducing valve (Air Conditioning and Sanitary Engineering Society) standards. The internal structure is simple and robust.
