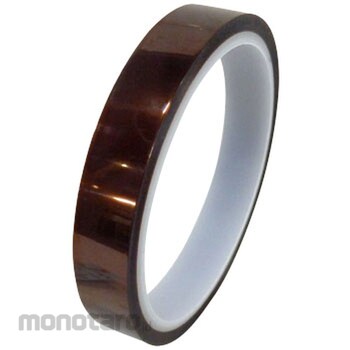

TERAOKA Kapton Adhesive Tape No.650S 15mmx20m 1roll
Rp459.900
Persediaan
Spesifikasi Produk
| Model Number | No.650S |
|---|---|
| Unit | 1roll |
| Heat Resistance Temperature (°C) | 200 |
| Tensile Strength (N/10mm [kgf]) | 49 [5.0] |
| Tape Length (m) | 20 |
| Adhesive Strength (N/25mm[gf]) | 5.39 [550] |
| Tape Thickness (mm) | 0.05 |
| Adhesive strength (N/10mm[gf]) | 2.16 [220] |
| Elongation (%) | 50 |
| Core Diameter (mm) | 75 |
| Main Uses | For electrical insulation, heat-resistant masking |
| Electric Erosion Coefficient | 1 |
| Core Inner Diameter (mm) | 75 |
| Adhesive | Silicone type |
| Characteristic | Heat and cold resistance, mechanical properties, electrical properties, chemical resistance |
| Dielectric Breakdown Voltage (kV) | 7 |
| Substrate ThickNess (mm) | 0.025 |
| Tensile Strength (N/25mm [kgf]) | 122.6 [12.5] |
| Tape Width (mm) | 15 |
| M Code | 06393615 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 28 January 2020 |
| Terakhir Diperbaharui | 15 August 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Interlayer insulation of transformers and coils, exterior insulation Heat-resistant masking such as solder coating and plating of printed circuit boards
Feature
Based on Kapton (polyimide film) with excellent heat and cold resistance, mechanical properties, electrical properties, chemical resistance, etc., it is a tape for electrical insulation and heat masking coated with a silicone-based adhesive. Excellent mechanical, electrical, physical and chemical properties are maintained over a wide temperature range from low to high temperature, so it can be used in various fields. Insulation of electrical equipment requiring heat resistance
