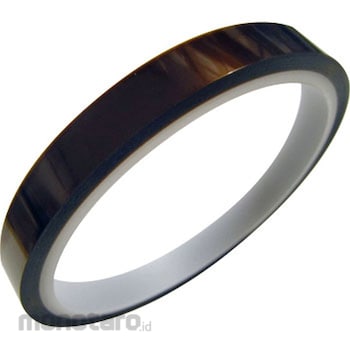

TERAOKA Kapton Adhesive Tape
#Grup produk P103658577
Spesifikasi
| Electric Erosion Coefficient | 1 |
|---|---|
| Tape Length (m) | 20 |
| Adhesive | Silicone type |
| Adhesive Strength (N/25mm[gf]) | 5.39 [550] |
| Adhesive strength (N/10mm[gf]) | 2.16 [220] |
| Characteristic | Heat and cold resistance, mechanical properties, electrical properties, chemical resistance |
| Core Diameter (mm) | 75 |
| Core Inner Diameter (mm) | 75 |
| Dielectric Breakdown Voltage (kV) | 7 |
| Elongation (%) | 50 |
| Heat Resistance Temperature (°C) | 200 |
| Main Uses | For electrical insulation, heat-resistant masking |
| Substrate ThickNess (mm) | 0.025 |
| Tape Thickness (mm) | 0.05 |
| Tensile Strength (N/10mm [kgf]) | 49 [5.0] |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Interlayer insulation of transformers and coils, exterior insulation Heat-resistant masking such as solder coating and plating of printed circuit boards
Feature
Based on Kapton (polyimide film) with excellent heat and cold resistance, mechanical properties, electrical properties, chemical resistance, etc., it is a tape for electrical insulation and heat masking coated with a silicone-based adhesive. Excellent mechanical, electrical, physical and chemical properties are maintained over a wide temperature range from low to high temperature, so it can be used in various fields. Insulation of electrical equipment requiring heat resistanceUlasan Produk
