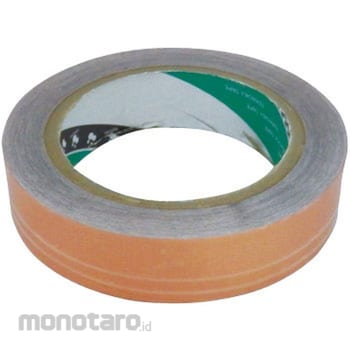

TERAOKA Conductive Copper Foil Adhesive Tape No.8323 25mm 1roll
Rp799.900
Persediaan
Spesifikasi Produk
| Model Number | No.8323 |
|---|---|
| Unit | 1roll |
| Electric Resistance (ohm/cm²) | 0.04 |
| Color | Dark brown |
| Base Material | Rolled copper foil |
| Tape Width (mm) | 25 |
| Adhesive strength (N / 25mm) | 8.85 |
| Tape Length (m) | 20 |
| Tensile Strength (N/25mm) | 98.1 |
| Main Uses | For electric and electronic |
| Substrate ThickNess (mm) | 0.035 |
| Tape Thickness (mm) | 0.07 |
| Core Diameter (mm) | 76 |
| Adhesive Strength (N/10mm) | 3.43 |
| Adhesive | Acrylic conductive |
| Characteristic | Conductive, flame retardant |
| TRUSCO Number | 430-6821 |
| M Code | 06393791 |
| Berat (Kg) | 0.2 |
| Tanggal Produk Terdaftar | 28 January 2020 |
| Terakhir Diperbaharui | 15 August 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
For electronic equipment Shielding cables for electromagnetic waves, short-circuiting of shielded switching transformers such as connectors, etc. Static electricity removal and grounding, etc.
Feature
High conductivity can be obtained stably both in the vertical direction (thickness direction) and in both directions. Flame retardant (UL510 Flame retardant acquired) Soldering on the back is possible.
