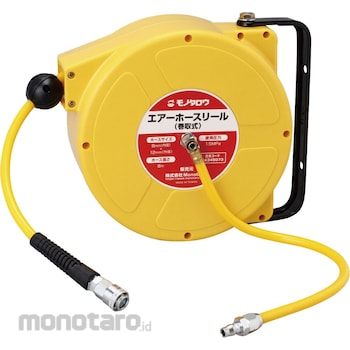

monotaro Air Hose Reel (Take-Up Type) MHR12-8012 1unit

Name: monotaro Air Hose Reel (Take-Up Type) MHR12-8012 1unit
Brand: monotaro
SKU: S010779705
Price: 1999900 IDR
Availability: OutOfStock

#Nomor SKU S010779705

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	MHR12-8012
Unit	1unit
Material (Hose)	PU (wire-reinforced)
Regular Pressure (MPa)	1.5
Cover Material	(Body) resin
Hose size (total length) (m)	8
Mounting Bracket (secondary side)	1/4 female one-touch coupler
Dimensions (Width W x Height H x Depth D) (mm)	320 x 282 x 142
Hose Dimensions (inner diameter x OD) (mm)	8 x 12
Mounting Bracket (Primary Side)	1/4 male coupler
M Code	24345073
Berat (Kg)	3.5
Tanggal Produk Terdaftar	28 June 2019
Terakhir Diperbaharui	20 October 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Deskripsi

Production plants, car maintenance factory, the air tasks such as paint shop.

Warning

- Do not pull too hard. The internal spring breaks and cannot be rewound.
- Please note that if the hose is pulled too far, it may not be possible to rewind.
- Since the hose is wrapped around the base of the body, the length of the hose that can actually be used will be shorter than the number of meters indicated.
- If the hose returns poorly, apply lubricating oil to make it easier to return.
- Bracket cannot be removed.
- There is momentum during winding, so be careful.
- Do not install in places with high temperatures and humidity or in direct sunlight.
- Do not install in places where it will be exposed to water. The internal mechanism may rust.
- When installing, use bolts and anchors that are suitable for the place where the load can be withheld and the installation surface.
