- Ball shape The valve seat and spherical surface of the spherical valve slide by simple operation, and can be opened and closed up to 90degree.
- Precision casting (lost wax).

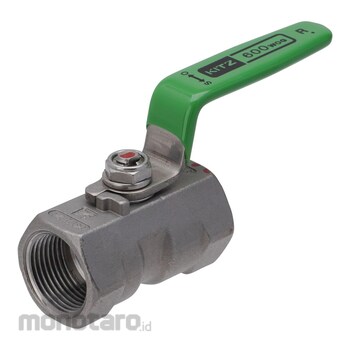

Kitz 600 Type SS Ball Valve (Reduce Tobear) UTKM Series (Katup) 20A 1pc
Rp799.900
Persediaan
Spesifikasi Produk
| Model Number | UTKM |
|---|---|
| Unit | 1pc |
| Material (Handle) | SUS430 |
| Ball Material | SUS316 |
| Material (stem) | SUS316 |
| Nominal Diameter B | 3/4 |
| Dimensions d (mm) | 85 |
| Dimension L (mm) | 59 |
| Dimension H (mm) | 44 |
| Nominal Diameter A | 20 |
| Dimension D (mm) | Φ12.5 |
| Class | 600 type |
| Handle Shape | Lever type |
| Connection Method | The screw-shaped |
| Shape | straight |
| Fluid Used | Water, oil, gas |
| Valve Type | Ball valve |
| Bore Diameter | Redeyusutoboa |
| Material (ball seat) | Fiberglass entry PTFE |
| Maximum Working Pressure (MPa) | 4.12 (cold water, oil, gas) |
| Body Material | SCS14A (lost wax precision casting) |
| TRUSCO Number | 169-2488 |
| M Code | 5827674 |
| Berat (Kg) | 0.2 |
| Tanggal Produk Terdaftar | 18 January 2019 |
| Terakhir Diperbaharui | 23 September 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Ball shape. The spherical surface of the valve seat and the spherical valve body slide with simple operation, and opening and closing is possible up to 90degree. Precision casting (lost wax).
