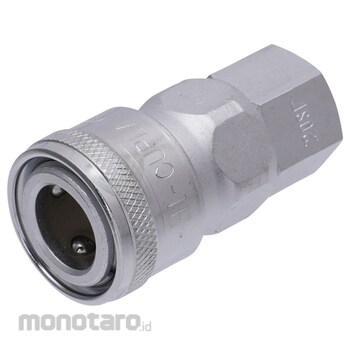

NITTO KOHKI Hi-Coupler Socket for Male Screw Mounting 20 SF 1pc

Name: NITTO KOHKI Hi-Coupler Socket for Male Screw Mounting 20 SF 1pc
Brand: NITTO KOHKI
SKU: S008328124
Price: 87000 IDR
Availability: InStock

#Nomor SKU S008328124

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	20 SF
Unit	1pc
Dimension A (mm)	13
Withstand Pressure (MPa)	2
Valve Structure	With valve
Screw Diameter T	Rc1/4
TRUSCO Number	113-2504
Material (Main Unit)	Steel (chrome plating)
Dimension Ls (mm)	49.5
Mating Connection Size	R1/4(PT1/4)
Material (Seal)	Nitrile rubber
Dimension Hs (mm)	Hex.19
Suitable fluid	Air
Operating Temperature Range (°C)	-20～+80
Dimensions d (mm)	Φ26.5
Type of Connection	Female thread
Socket or Plug	socket
Maximum Operating Pressure (MPa)	1.5
ROHS Directive (Corresponding to 10 Substances)	Correspondence
Withstand Pressure (kgf/cm²)	20
M Code	02109195
Berat (Kg)	0.2
Tanggal Produk Terdaftar	21 November 2018
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

This is a highly versatile coupler that can be used for everything from air piping in factories to connecting hoses for air tools.
Steel is suitable for air, and brass and stainless steel are suitable for water. However, please be aware that the fluid on the plug side will flow out when separated.
Important steel components are hardened to improve strength. It has particularly excellent wear resistance and durability.
The main body material, size, and mounting shape have been standardized to accommodate a wide range of pneumatic applications.

Feature

It is a coupler excellent in versatility from air piping in the factory to hose connection of pneumatic tool. Steel for air, brass for water, stainless steel is suitable. However, please note that plug side fluid flows out when separating. Improve strength by quenching important steel components. It is particularly excellent in wear resistance and durability. We standardize the body material, size and mounting shape so that it can be used for a wide range of pneumatic applications.
