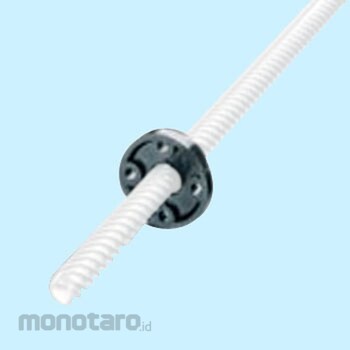

THK Change Nut DCMA 20T 1pc
Rp549.900
Persediaan
Spesifikasi Produk
| Model Number | DCMA 20T |
|---|---|
| Unit | 1pc |
| Material | High strength zinc alloy |
| Compatible | Axis: CT20T |
| Dynamic Allowance Thrust | 4170N (contact surface pressure 9.8N/mm² hour) |
| Allowable Torque | 40.2Nm (contact surface pressure 9.8N/mm² hour) |
| Outer Diameter Tolerance | 0 to-0.062mm (h9) |
| Flange Static Allowable Load | 34600N |
| Flange Outer Diameter | 56mm |
| P.C.D | 42mm |
| Outside Diameter D | 32φ mm |
| Length L | 20mm |
| Flange thickness | 7mm |
| Dimension B | 6.6φ mm |
| Dimension F | 6.5mm |
| Dimension D (mm) | 2φ |
| Dimensions r | 1.5mm |
| M Code | 07271546 |
| Berat (Kg) | 0.5 |
| Tanggal Produk Terdaftar | 16 October 2018 |
| Terakhir Diperbaharui | 01 December 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Linear motion can be rotated, rotational motion can be converted to linear, efficiency of 70%. By pushing the multiple screw shaft with a cylinder or the like, torque is easily generated. It is also ideal for fast forward mechanisms.
Warning
* Because the delivery date changes according to the order status, please confirm at the time of ordering
