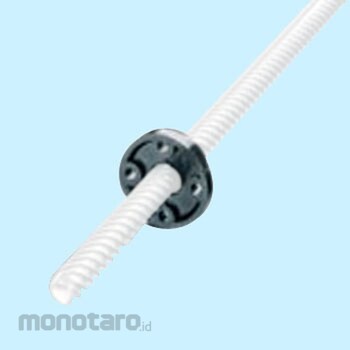

THK Change Nut
#Grup produk P102543676
Spesifikasi
| Material | High strength zinc alloy |
|---|---|
| Compatible | Axis: CT20T |
| Outer Diameter Tolerance | 0 to-0.062mm (h9) |
| Flange Static Allowable Load | 34600N |
| Allowable Torque | 40.2Nm (contact surface pressure 9.8N/mm² hour) |
| Dimension B | 6.6φ mm |
| Dimension D (mm) | 2φ |
| Dimension F | 6.5mm |
| Dimensions r | 1.5mm |
| Dynamic Allowance Thrust | 4170N (contact surface pressure 9.8N/mm² hour) |
| Flange Outer Diameter | 56mm |
| Flange thickness | 7mm |
| Length L | 20mm |
| Outside Diameter D | 32φ mm |
| P.C.D | 42mm |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Linear motion can be rotated, rotational motion can be converted to linear, efficiency of 70%. By pushing the multiple screw shaft with a cylinder or the like, torque is easily generated. It is also ideal for fast forward mechanisms.
Warning
* Because the delivery date changes according to the order status, please confirm at the time of ordering Ulasan Produk
