Since the tooth profile of the shaft is Formed by cold rolling, the surface of the tooth surface is work hardened to 250 HV or more, and because it has a smooth mirror finish, it is excellent in abrasion resistance and movement by a combination of nuts is extremely high It is smooth. The internal structure of the tooth surface causes fiber flow along the contour of the tooth profile, the tissue at the root of the tooth is extremely honey, and the fatigue strength is increasing.
Useable: Screw nut DCM, DC common

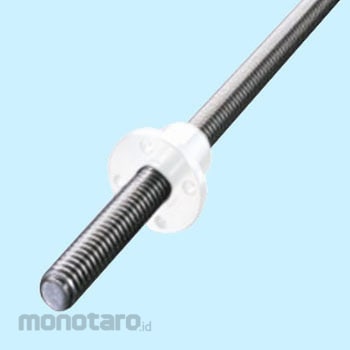

THK Screw Shaft CS 12T+1000L 1pc
Rp1.099.900
Persediaan
Spesifikasi Produk
| Model Number | CS 12T+1000L |
|---|---|
| Unit | 1pc |
| Pitch Error | Single maximum: ± 0.025, cumulative maximum: ± 0.2/300mm |
| Material | S45C |
| Compatible | Nut: DC 12, DCM 12 |
| Compatible Nut | DC12 DCM12 |
| Lead Angle | 3 degrees 19 minutes |
| Shaft Length | 1000mm |
| Shaft Outer Diameter | 12mm |
| Dimensions d0 | 11φ mm |
| Dimensions dR | 9.5φ mm |
| Lead | 2mm |
| M Code | 07270873 |
| Berat (Kg) | 0.8 |
| Tanggal Produk Terdaftar | 16 October 2018 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
* Because the delivery date changes according to the order status, please confirm at the time of ordering
