Since the tooth profile of the shaft is Formed by cold rolling, the surface of the tooth surface is work hardened to 250 HV or more, and because it has a smooth mirror finish, it is excellent in abrasion resistance and movement by a combination of nuts is extremely high It is smooth. The internal structure of the tooth surface causes fiber flow along the contour of the tooth profile, the tissue at the root of the tooth is extremely honey, and the fatigue strength is increasing.
Useable: Screw nut DCM, DC common

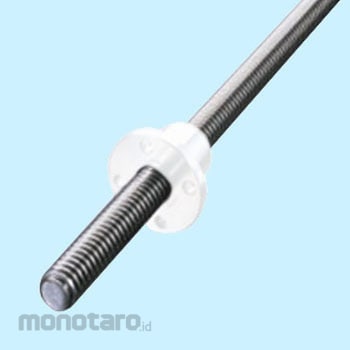

THK Screw Shaft
#Grup produk P102543658
Spesifikasi
| Material | S45C |
|---|---|
| Compatible | Nut: DC 12, DCM 12 |
| Compatible Nut | DC12 DCM12 |
| Lead Angle | 3 degrees 19 minutes |
| Shaft Length | 1000mm |
| Dimensions d0 | 11φ mm |
| Dimensions dR | 9.5φ mm |
| Lead | 2mm |
| Pitch Error | Single maximum: ± 0.025, cumulative maximum: ± 0.2/300mm |
| Shaft Outer Diameter | 12mm |
