Be used for general air pressure piping, is the most standard one-touch fittings.
. Large selection of models, correspond to any air pressure piping.
. After installation, you can change the take-off angle of the tube. (Connection port shape: limited to t

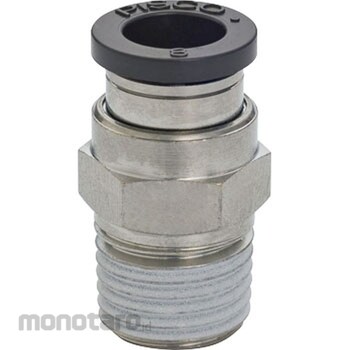

PISCO Tube Fitting Straight PC6-02 1pc
Rp31.000
Persediaan
Spesifikasi Produk
| Model Number | PC6-02 |
|---|---|
| Unit | 1pc |
| Material | Metal body: Brass+Nickel plating. Open ring: polyacetal (POM) |
| Shape | straight |
| Color | Open ring: black |
| Type | Standard type |
| Operating Temperature Range | 0 to 60°C (without freezing) |
| Dimension L | 17.6mm |
| Effective Sectional Area | 12.5mm² |
| Maximum Working Pressure | 1MPa |
| Dimension A (mm) | 11 |
| Connection Thread | 1/4 |
| Orifice Diameter | 5φ mm |
| Dimension B | 23.7mm |
| Dimensions c | 17mm |
| Tube Outside Diameter | 6φ mm |
| Fluid | Air, water (conditioned) |
| Packing | Normal packaging |
| Vacuum Pressure | -100kPa |
| Opposite Side H | 14mm |
| RoHS Directive | Yes |
| TRUSCO Number | 290-9588 |
| M Code | 08265153 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 02 October 2018 |
| Terakhir Diperbaharui | 21 October 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
use fluid is the time of water, please use the surge pressure at or below the maximum operating pressure. General tap water is available. Please be sure to attach the insert ring.
