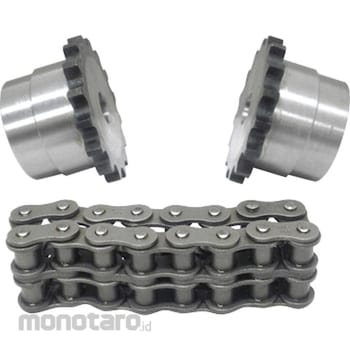

Katayama Chain Standard Chain Coupling KC-6018 Main 1pc
Rp1.299.900
Persediaan
Spesifikasi Produk
| Model Number | KC-6018 Main |
|---|---|
| Unit | 1pc |
| Number of Gears | 18 |
| Pitch | 19.05mm |
| Type | only a main part |
| Maximum Rotation Speed | 100min-1(r.p.m) |
| Dimension A (mm) | 28 |
| Overall Length L | 123.5mm |
| Dimension S | 11.5mm |
| Dimension D (mm) | 88φ |
| Dimension L | 56mm |
| Dimension G | 19mm |
| Dimension M | 18mm |
| Dimension 0 | 128φ mm |
| Using Chain | No.60 |
| Available Atmosphere Temperature | -10 to 60°C |
| Chain Maximum Width E | 52.5mm |
| GD2x10-3 | 40.21kgf m² |
| Allowable Argument | 1° |
| ShaftHoled1 | 22-56mm |
| TRUSCO Number | 804-0567 |
| M Code | 7087507 |
| Berat (Kg) | 6.2 |
| Tanggal Produk Terdaftar | 02 October 2018 |
| Terakhir Diperbaharui | 20 October 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Compact, transmission efficiency is more expensive than other couplings. Handling is simple and centering is easy. It is resistant to the atmosphere and impact and has a long life. Because the coupling and the case are both O-ring fixed on both sides, com
Warning
-Since we can not deal with additional work such as hole processing at our company, please understand.
