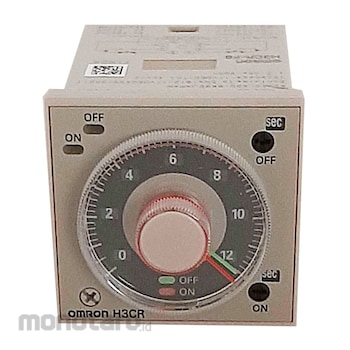

OMRON Timer H3CR-F Type H3CR-F8 AC100-240/DC100-125OMI 1pc

Improved resistance to waveform distortion of power supply.
UL, CSA, LR, NK acquired.
Safety design conforming to EN 61812-1.
CE mark correspondence.
Fourteen time ranges can be selected from 0.05 seconds to 30 hours.
0 Setting instantaneous output possible. It instantaneously outputs by turning the scale in the 0 direction, so it is easy to confirm the sequence operation.
Withstand voltage:
AC 2000 V 50/60 Hz 1 min (Between charging metal part and non-charging metal part ) AC 2000 V 50/60 Hz 1 min (between control output and operation circuit) AC 2000V 50/60Hz 1 min ( between different contacts) AC 1000 V 50/60 Hz 1 min)
Set time:
Scale numbers : (time unit)
1.2: (Sec) 0.05-1.2, (10S) 1.2-12, (Min, Hrs) 0.12-1.2
3: (Sec) 0.3-3, (10S) 3-30, (Min, (min, hrs) 0.3 to 3 12: (sec) 1.2 to 12, (10 s) 12 to 120, (min, hrs) 1.2 to 12
30: (sec) 3 to 30, (10 s) 30 to 300 3 - 30
