This is an in-line type check valve that flows only in the axial direction.
With the specified cracking pressure, it allows oil to pass freely in one direction, but blocks the flow of oil in the opposite direction.
NACHI Inline Check Valve CN-T03-3-11 1unit
Rp1.299.900
Persediaan
Spesifikasi Produk
| Model Number | CN-T03-3-11 |
|---|---|
| Unit | 1unit |
| Peak Flow Rate (L/minute) | 30 |

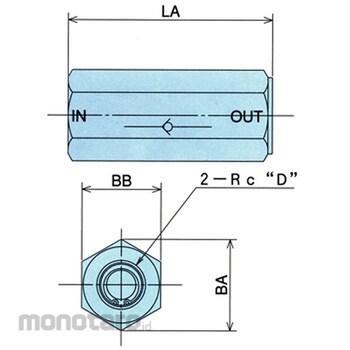

| Dimensions bb (mm) | 27 |
| Dimensions D(ɸmm) | 3/8 |
| Mounting Method | Screw connection type |
| Maximum Working Pressure (MPa) | 21 |
| Dimension La (mm) | 70 |
| Cracking Pressure (MPa) | 0.5 |
| Dimensions ba (mm) | 31.2 |
| Cracking Pressure (kgf/cm²) | 5.1 |
| Maximum Working Pressure (kgf/cm²) | 214 |
| M Code | 07008985 |
| Berat (Kg) | 0.2 |
| Tanggal Produk Terdaftar | 17 September 2018 |
| Terakhir Diperbaharui | 20 October 2025 |
