The patented axial and radial pressure loading method generates high pressure of 30MPa with high efficiency.
It is highly durable and has an extremely long lifespan.
Internal meshing with modified involute low-tooth gears greatly reduces pulsation and noise, making it extremely quiet.
The structure is simple and maintenance and inspection are easy.

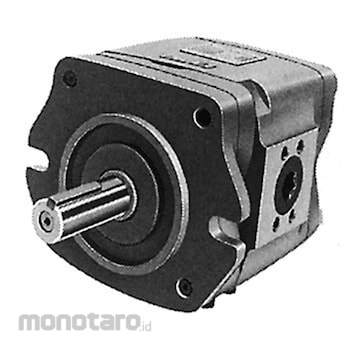

NACHI Gear Pump IPH-6B-125-11 1unit
Rp66.999.900
Persediaan
Spesifikasi Produk
| Model Number | IPH-6B-125-11 |
|---|---|
| Unit | 1unit |
| Mounting Method | Mounting flange type clockwise rotation |
| Maximum Working Pressure (MPa) | 30 |
| Rated Pressure (MPa) | 25 {255} |
| Revolution | Min 300 - Highest 2000min-1(r.p.m) |
| Dimension D (mm) | Φ38 |
| LB Dimensions (mm) | 122.5 |
| Pump Capacity (cm³/rev) | 125.9 |
| Dimension La (mm) | 263.5 |
| M Code | 07010096 |
| Berat (Kg) | 0.2 |
| Tanggal Produk Terdaftar | 17 September 2018 |
| Terakhir Diperbaharui | 27 May 2025 |
