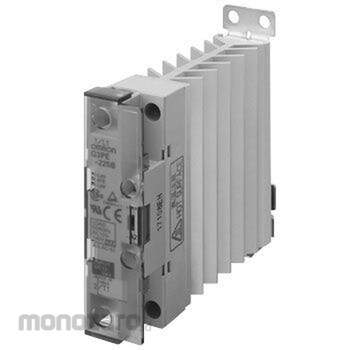

OMRON Solid state for heater, relay G3PE 1pc
Rp1.699.900
Persediaan
Spesifikasi Produk
| Unit | 1pc |
|---|---|
| Type | Solid state/relay |
| Load voltage (V) | AC180 to 528(50/60Hz) |
| Rated Voltage (V) | DC12 to 24 |
| Equipped with / without Zero Cross Function | Included |
| Suitable Load of Output | 0.1-15A (at 40 ° C) |
| Type of Insulation | Photo triac coupler |
| Insulation Resistance (MΩ) | 100 or more (at 500V mega) |
| Number of Phases | Single-phase |
| Operating Ambient Temperature (°C) | -30 to +80 (with no icing or condensation) |
| Ambient Relative Humidity (RH) | 45 to 85 |
| Rated Load Voltage (V) | AC200 to 480(50/60Hz) |
| Storage Temperature Range (°C) | -30 to +100 (with no icing or condensation) |
| Voltage Drop When Output Turned On (V) | 1.6 (RMS) or less |
| Operation Indicator Lamp | Yes (yellow) |
| Operating Voltage Range (V) | DC9.6 to 30 |
| Leakage Current (mA) | 10 or less (at 200 VAC) |
| Return Voltage (V) | DC1.0 or more |
| Operating Voltage (V) | DC9.6 or less |
| Operating Time (ms) | 1/2 cycle of load power supply + 1 or less |
| M Code | 39066447 |
| Berat (Kg) | 0.2 |
| Tanggal Produk Terdaftar | 04 September 2018 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Small, slim type integrated with radiator. Surge voltage tolerance of output circuit is improved by surge pass function. UL, CSA, EN standard (T & uuml; V certified) acquired.
