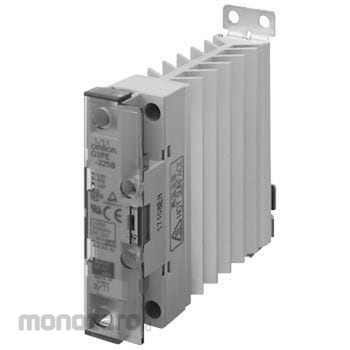

OMRON Solid state for heater, relay G3PE
#Grup produk P102371219
Sebelum PPN:
Rp1.699.900 - Rp2.099.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Ambient Relative Humidity (RH) | 45 to 85 |
|---|---|
| Equipped with / without Zero Cross Function | Included |
| Return Voltage (V) | DC1.0 or more |
| Insulation Resistance (MΩ) | 100 or more (at 500V mega) |
| Type of Insulation | Photo triac coupler |
| Leakage Current (mA) | 10 or less (at 200 VAC) |
| Number of Phases | Single-phase |
| Operating Ambient Temperature (°C) | -30 to +80 (with no icing or condensation) |
| Operating Time (ms) | 1/2 cycle of load power supply + 1 or less |
| Operating Voltage (V) | DC9.6 or less |
| Operating Voltage Range (V) | DC9.6 to 30 |
| Operation Indicator Lamp | Yes (yellow) |
| Rated Voltage (V) | DC12 to 24 |
| Storage Temperature Range (°C) | -30 to +100 (with no icing or condensation) |
| Type | Solid state/relay |
| Voltage Drop When Output Turned On (V) | 1.6 (RMS) or less |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Small, slim type integrated with radiator. Surge voltage tolerance of output circuit is improved by surge pass function. UL, CSA, EN standard (T & uuml; V certified) acquired.
