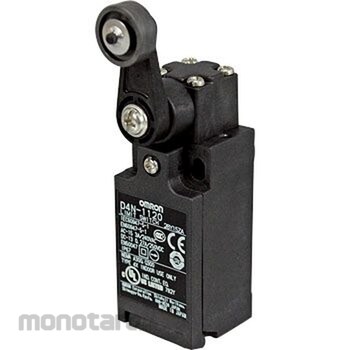

OMRON Sakelar Batas 2 Contact Series dengan Operasi Pembukaan Langsung D4N 1pc
Rp349.900
Persediaan
Spesifikasi Produk
| Unit | 1pc |
|---|---|
| Rated Insulation Voltage (V) | (Ui)300 |
| Type Of Actuator | Roller lever type (resin lever, resin roller) |
| Rated Frequency (Hz) | 50/60 |
| Insulation Resistance (MΩ) | over 100 |
| Operating Ambient Temperature (°C) | -30 to +70 (but no freezing) |
| Contact Resistance (miliΩ) | 25 or less |
| Impact Resistance Durability (m/s²) | 1000 |
| Ambient Relative Humidity (RH) | 95 or less |
| Vibration Resistance (Malfunction) | 10-55Hz 0.75mm single amplitude |
| Shock Resistance Malfunction (m/s²) | 300 |
| Mechanical Durability | 15 million times or more |
| Minimum Applicable Load (V-mA) | DC5V-1 resistance load (N level reference value) |
| Allowable Operating Speed (mm/s) | 1 to 500 (D4N-1120) |
| Electrical Durability | 500,000 operations or more (250 VAC, 3 A, resistance load), 300,000 operations or more (250 VAC, 10 A, resistance load) |
| Electric Shock Protection Class | Class II (double insulation) |
| Rated Impulse with Stand Voltage (kV) | Between same pole terminals: 2.5 Between different pole terminals: 4 Between each terminal and non-charged metal part: 6 |
| Pollution Degree (Environment to Use) | Pollution degree 3 (EN60947-5-1) |
| Open thermal Current (A) | 10(EN60947-5-1) |
| Built-in Switch | 1NC / 1NO (snap action) |
| M Code | 39039987 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 04 September 2018 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Safety and globally offer a range of standardized range of limit switches. The contact configuration is 1NC / 1NO, 2NC, 2NC / 1NO, 3NC available. (Slow, action has MBB specification). We also offer M12 connector type, which realizes saving man-hours and facilitates replacement work.Standard adoption of Au clad contact with high contact reliability. It corresponds to both general load and micro load. It corresponds to EN115, EN 81-1, EN 81-2. (Slow, action type only).UL, EN (TUV), CCC standards acquired.
