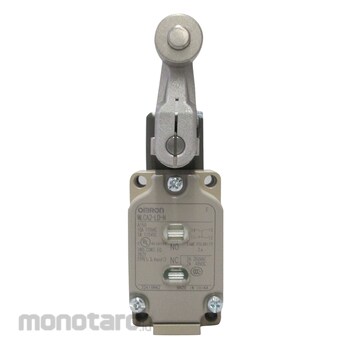

OMRON Limit Switch WL Series WLCA2-LD-N 1pc
Rp979.900
Persediaan
Spesifikasi Produk
| Model Number | WLCA2-LD-N |
|---|---|
| Unit | 1pc |
| Family Type | WL-N |
| Product Code | WLN 0385E |
| Terminal Type | Screw Terminal |
| Roller Lever (mm) | R38 |
| Actuator Type | Roller Lever |
| Indicator | LED |
| Pretravel (PT) (°) | 15±5 |
| Type | Standard form |
| Shape | General purpose vertical type |
| Switch | General built-in switch 1a1b contact type |
| Type of Lever | Lever short (R38) |
| Protection Class | IP67 |
| Terminal Shape | Screw terminal (conduit size G1/2) |
| Withstand Voltage | Between terminals of the same polarity: AC1000V 50/60Hz 1min, between each terminal and ground: AC2200V 50/60Hz 1min, between each terminal and non-current-carrying metal parts: AC2200V 50/60Hz 1min |
| Current (A) | 10 |
| Rated Frequency (Hz) | 50/60 |
| Terminal screw | 4-M3.5 |
| Insulation Resistance (MΩ) | 100 or more (at DC500V megger) |
| Load Connection | Common load/minor load common use |
| Operating Ambient Temperature (°C) | -10 to 80 (but no freezing). |
| Contact Resistance (miliΩ) | 25 or less (initial value, built-in switch only) |
| Environmental response | Basic form |
| Ambient Humidity (%RH) | 35 to 95 |
| Operation Indicator light | LED(AC/DC10~115V) |
| Mechanical Durability | Over 15 million times |
| Allowable Operating Speed (mm-m/s) | 1 to 1 (for WLCA2-N) |
| Inrush Current (A) | (Always closed) Max. 30, (Always open) Max. 20 |
| Short Circuit Protection Device | 10A fuse gG or gI (IEC269) |
| Rated Sealed Thermal Current | 10A, 0.5A (EN60947-5-1) |
| Force Required for Operation (OF) (N) | max 13.34 |
| Earth Terminal | none |
| Return Force (N) | Reference value RF (minimum) 1.18 |
| Movement PT Until Movement (°) | 15±5 |
| Movement After Movement (OT) (°) | Minimum 70 |
| Hysteresis Movement (MD) (°) | (Reference value maximum) 12 |
| Conduit Opening Size | G1/2 |
| Shock Malfunction (m/s²) | 2 |
| Impact Durability (m/s²) | 2 |
| Allowable Operation Frequency (times/minute) | Mechanical: 120, Electrical: 30 |
| Vibration (Malfunction) | 10~55Hz double amplitude 1.5mm |
| Berat (Kg) | 0.4 |
| Tanggal Produk Terdaftar | 04 September 2018 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Limit Switch, Roller Lever: R38 mm
