A pre-filter required to remove fine particles (iron rust, dust, etc.) in water.
It is a filter that removes impurities at the very beginning of manufacturing deionized water, RO (reverse osmosis membrane) water, ultrapure water, etc., smoothes the subsequent process, and prevents deterioration.
The world standard size is 250 mm (10 inches), so it fits the housing of other manufacturers.
A high-performance spool type cartridge filter that does not contain impurities by a special spinning method.
Filtration of industrial water / well water Filtration of acid / alkaline chemicals Pre-filtration of precision filtration Coating solution of paint solution / fixing solution / Filtration of oil-based plating solution Filtration of washing water Regeneration filtration
* The flow rate is the value when 70 to 90% is removed.
* Since the removal rate is important, we recommend using the recommended flow rate.

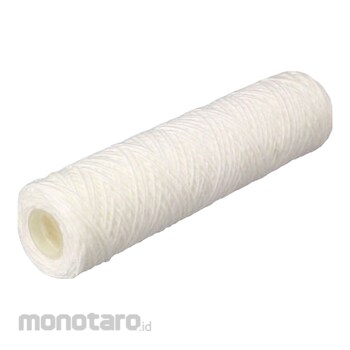

monotaro Thread Wound Cartridge Filter (Filter Cartridge) 20microm 1pc
Rp80.000
Persediaan
Spesifikasi Produk
| Unit | 1pc |
|---|---|
| Filtration Accuracy (µm) | 20 |
| Outer Diameter (φmm) | 63 |
| Recommended Flow Rate (L/minute) | 2 or less |
| Standard Flow Rate (L/minute) | less than 4 |
| Overall Length (mm) | 250 |
| Inner Diameter (Φmm) | 27 |
| Filter Material | PP |
| Applicable housing size | 10 inches |
| Limit Pressure Loss (MPa) | (Pressure difference between inlet and outlet until replacement) △ P = 0.1 or more |
| Maximum Operating Temperature (°C) | 80 |
| M Code | 69465034 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 07 July 2018 |
| Terakhir Diperbaharui | 21 October 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
- flow rate is 70 to 90% numerical value when removing. _x000D_- We recommend using recommended flow rate to emphasize removal rate.
Feature
Pre-filter required to remove fine particles (iron rust, dust, etc.) in water.This filter removes impurities at the beginning of the production of deionized water, RO (reverse osmosis membrane) water, ultrapure water, etc., smoothes the subsequent processes, and prevents deterioration.
As it is the world standard size of 250mm (10 inches), it fits the housing of other manufacturers.
This is a high-performance spool-type cartridge filter that does not contain impurities by a special spinning method.
