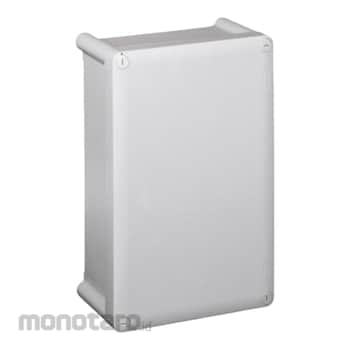

Legrand Box Panel Listrik Plastik 035950 Grey 180x140x86mm 1pc
Rp419.900
Persediaan
Spesifikasi Produk
| Model Number | 035950 |
|---|---|
| Unit | 1pc |
| Impact Protection (IK) | IK08 |
| Mounting Method | Surface mounted |
| Type of Covering | Cover |
| Transparent Cover/door | No |
| Material Plate Thickness Cabinet (mm) | 2 |
| Material Plate Thickness Door/cover (mm) | 2 |
| Height (mm) | 200 |
| Width (mm) | 160 |
| Depth (mm) | 94 |
| Built-in Depth (mm) | 94 |
| Inner Depth (mm) | 86 |
| RAL Number | 7035 |
| Color | Grey |
| Number of Rows | 1 |
| Extension Possible | No |
| Width in Number of Modular Spacings | 9 |
| Housing Material | Plastic |
| Surface Protection | Untreated |
| IP Protection | IP55 |
| Protection Class | II |
| Berat (Kg) | 0.3 |
| Tanggal Produk Terdaftar | 02 February 2017 |
| Terakhir Diperbaharui | 25 March 2026 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Plastic industrial boxes
- Smooth surfaces
- Choice of Fixing :
- Internal : 4 oblong holes at back of box
- At the 4 corners outside the wiring space, with 4 screws
- Using wall mounting lugs Cat.No 0 358 02 (except boxes 130 x 75 x 74 mm)
IP 55 - IK 07 grey RAL 7035
- Class II provided by protective caps for the Fixing screws (supplied)
- Equipment can be fixed on rail or solid plate
- IP 2X terminal blocks fixed at the top from 130 x 130 mm size
- Cover opened/closed with 1/4 turn of a flat screwdriver. Indication of closed/open position : I/O
- Captive covers with ties, except boxes 310 x 240 mm and 360 x 270 mm
- Opaque cover
- Internal dimensions - Height x Width x Depth (mm) : 180 x 140 x 86
