Plain and basic design.
Stepped graduation face prevents dust ingress between the main scale and slider.
The small vernier face angle (14°) provides easy reading.
Can measure steps, since the end faces of the beam and slider are the zero reference point (measuring face). Standard calipers allow four types of measurement, i.e, outside, inside, depth, and step.
Carbide-tipped jaw calipers are optimal for rough finished parts, castings, grinding stones, etc.
Decimal and fractional graduated scales (metric/inch and inch model only).

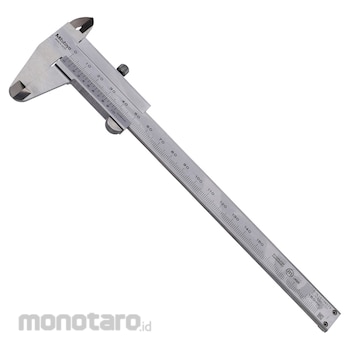

Mitutoyo Vernier Caliper (Jangka Sorong) 530-101 150/0.05mm 1pc
Rp759.900
Persediaan
Spesifikasi Produk
| Model Number | 530-101 |
|---|---|
| Unit | 1pc |
| Dimensions b (mm) | 21.5 |
| Accuracy (mm) | 0.05 |
| Dimensions l (mm) | 229 |
| Dimension D (mm) | 40 |
| Dimensions e (mm) | 53.5 |
| Dimensions a (mm) | 17 |
| Maximum Permissible Error (mm) | +0.05 (EMPE, SMPE) |
| Depth Bar | Blade |
| Graduation (mm) | 0.05 |
| Dimensions f (mm) | 30 |
| Dimensions h (mm) | 16 |
| Unit | Metric |
| Material | Steel |
| Measurement Range (mm) | 0 to 150 |
| Berat (Kg) | 0.2 |
| Tanggal Produk Terdaftar | 23 November 2016 |
| Terakhir Diperbaharui | 15 August 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Peringatan
Tidak termasuk sertifikat kalibrasiWarning
Exclude Calibration Certificate_x000D_Image on this page only as Representative Image, Please check the specifications of each size and color for details
Feature
This is the most commonly used vernier caliper. Stepped scale surface prevents dust from entering between the main scale and slider. Since the main scale and the head end face of the slider are set as the 0 (zero) reference point (measurement surface), step measurement is possible. The standard vernier caliper can perform 4 types of measurements, including outside, inside, and depth measurements, as well as step measurements. The vernier scale surface is gently inclined (14°), making it easy to read. This product is eligible for our "recalibration service", that allows you to quickly and easily request proofreading and delivery of existing products online. For more information, please check the recalibration service category.
