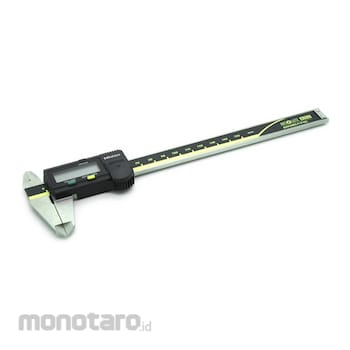

Mitutoyo Digital Caliper (Jangka Sorong) 500-181-30 0-150mm/0.01mm 1pc

Name: Mitutoyo Digital Caliper (Jangka Sorong) 500-181-30 0-150mm/0.01mm 1pc
Brand: Mitutoyo
SKU: S000069019
Price: 2299900 IDR
Availability: InStock
Rating: 100 (4 reviews)

#Nomor SKU S000069019

Mitutoyo

Wishlist

Rating:

100% of 100

(4)

4 Ulasan

Spesifikasi Produk

Model Number	500-181-30
Unit	1pc
Minimum Scale (mm)	0.01
Material	Stainless Steel
Dimension L (mm)	233
Dimensions a (mm)	40
Dimensions b (mm)	21
Dimensions c (mm)	16.5
Dimension D (mm)	16
Resolution (mm)	0.01
Accuracy (mm)	±0.02
Repeatability (mm)	0.01
Measurement Range (mm)	0 to 150
Resolution (inch)	0.01
Berat (Kg)	0.4
Tanggal Produk Terdaftar	23 November 2016
Terakhir Diperbaharui	15 August 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Mitutoyo's absolute Digimatic Caliper is the next generation of electronic calipers.
It keeps track of its origin point once set. Whenever turned on, the large LCD displays the actual slider position ready to start measurement. No more repeated
zero setting is necessary with the absolute encoder technology, as well as no more
concern for over speed errors.

Peringatan

Tidak termasuk sertifikat kalibrasi

Warning

Exclude Calibration Certificate

Feature

- Large and clear LCD readout.
- The ZERO/ABS key allows the display to be Zero-Set at any slider position along the scale for incremental comparison measurements. This switch will also allow return to the absolute (ABS) coordinate and display of the true position from the origin point (usually jaws-closed point).
- Data Hold Unit (959143) is optional.
- Carbide-tipped jaw type calipers are also available.
- Supplied in fitted plastic case. Except 1000mm / 40inch supplied in wooden case.
