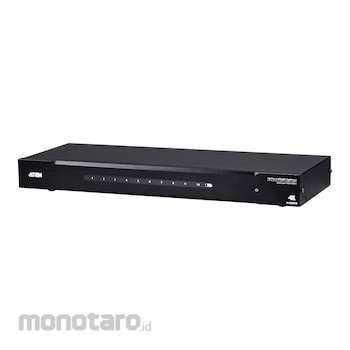

ATEN HDMI Splitter

LEDs
Power 1 x LED (Green)
Input 1 x LED (Green)
Video Output 10 x LED (Green)
Video Input Interfaces 1 x HDMI Type A Female (Black)
Impedance 100 Ω
Max. Distance 5m (at 4K resolution)
Video Output Interfaces 10 x HDMI Type A Female (Black)
Impedance 100 Ω
Max. Distance 10m (at 4K resolution)
Video
Max. Data Rate 10.2 Gbps (3.4 Gbps Per Lane)
Max. Pixel Clock 340 MHz
Compliance HDMI (3D, Deep Color, 4K);
HDCP 1.4 Compatible
Max. Resolution Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

Control
RS-232 Connector: 1 x DB-9 Female (Black)
Baud Rate: 19200 / Data Bits: 8 / Stop Bits:1 / Parity: No / Flow Control: No
EDID Settings EDID Switch x1
EDID Mode: Default (1080p) / Port 1 / Auto

Connectors
Power 1 x DC Jack
USB Port 1 x Micro USB (FW upgrade)
Power Consumption DC5V:4.34W:20BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
