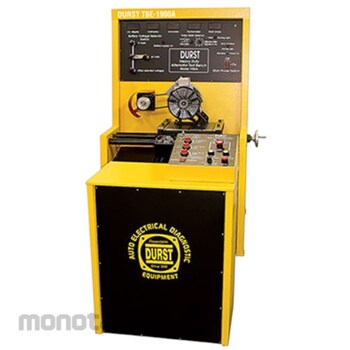

Durst Alternator Test Bench (Alat Uji Alternator)

TB-1900A-11 Test Bench
Model 1900S Series Heavy Industrial Alternator Test Bench for Heavy Vehicles, Aviation, Mining and Defence Applications.

The above combination gives the operator a fully switchable, heavy-duty load bank of up to 300 Amps
at 24 Volts with 18 different increments. The Load Bank is fan cooled for continuous use & operates
from its own 24 Volt DC supply.

Provision for Optional Oscilloscope
Automatic Calculation gives Accurate Alternator Speed

Performance
• Digital Volt Meter: 0-200 Volts DC, 3½ Digit display. Accuracy 0.25% ± 1 count. Size: 96mm x 48mm. Two terminals are provided for connecting the Volt meter test leads.
• Digital Ammeter: 0-500 Amps DC, 3½ Digit display. Accuracy 0.25%FS± 1 count. Size: 96mm x 48mm. Ammeter is used to indicate current being delivered by the starter under test.
• Digital Tachometer: 0-20,000 RPM Forward and Reverse, 3½ Digit display. Accuracy± 10 RPM. Size: 96mm x 48mm.By simply setting gear ratio switches, the automatic calculation circuit gives direct starter motor speed.
• Digital Field Amp Meter: 0-20 Amps, 3-1/2 digit display. 0.25% FS + 1 count. Size: 96mm x 48mm. The 0-20 Amp meter can be used for “A” Circuit Neg. and “B” Circuit Pos. testing & is switched via a rocker switch on the Platform Control Panel. Two terminals are provided for connection to test leads when using the Field Amp Meter as it can also be used for testing current draw on most automotive components e.g.: ignition coils, wiper motors, solenoids etc.
• Digital AC Ripple Volt Meter: 0-20 Volts, AC 3-1/2 digit display. Accuracy; 0.25% FS +/- 1 count. Size: 96mm x 48mm. Designed for testing Star Points and super imposed AC Ripple Voltage of Diodes. Operation is from two Volt terminals on the front of the slide control panel.
• Alternator Output: AC Current 25 Amps
• Flexible Drive Pulley Supplied as standard: Double “A” section at 120 mm diameter. K 10 Section Polly vee 90mm diameter
•Test Leads: A full set of leads for alternator Amps, field Amps, Volts, and AC ripple Volts, are supplied with Test Bench. Test leads are fitted with appropriate terminals & clips to make all test connections easy for the operator.
• Platform Connection Panel: Ergonomically designed for easy operation with short run connections to alternator & panel

Starter Gears Manufactured from high quality high carbon steel. Four gears are supplied as standard to cover the majority of applications, 33 Tooth, 36 Tooth, 39 Tooth, 59 Tooth, other custom gears to suit individual requirements available on request
