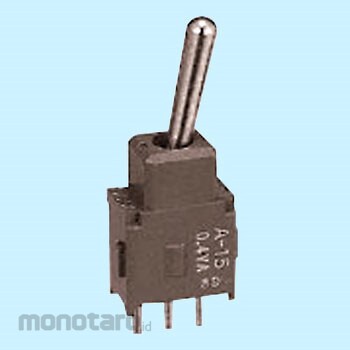

NKK Switches (formerly Nippon Kaikei) Basic lever type toggle switch A series

It can be washed as a whole. Wash in a liquid bathtub with a depth of 10 cm within 5 minutes.
The unique switching moderation mechanism, which is a combination of a coil spring, a sliding rod, and a switching plate, provides reliable switching and a light operation feeling.
The PC-H and PC-V terminal types can be applied to 1/2 inch card racks.
By using resin for the lever, we have secured an electrostatic withstand voltage of 20 kV or more (at the tip of the lever).
Since the lever tilt angle is large (26 °), the tilt direction becomes clear.
Uses a sliding twin crossbar contact mechanism. Maintains stable and high contact reliability in the small current and low voltage range.
The terminal part has an epoxy seal to prevent the ingress of flux and the occurrence of terminal backlash, further improving contact stability.
The pitch between terminals is for printed circuit boards that use inch pitch.
Office automation equipment, radios, professional video cameras, exchanges, electrical measuring instruments, control panels, etc.
* When cleaning the flux after soldering, use an alcohol-based cleaning solution. Do not wash with organic solvents.
Do not operate the switch or apply force to the operation part during cleaning.
