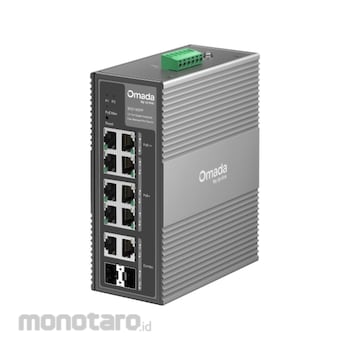

Omada Industrial Easy Managed Switch
#Grup produk P114385464
Sebelum PPN:
Rp1.899.900 - Rp2.699.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Centralized Management | Omada Cloud-Based Controller; Omada Hardware Controller; Omada Software Controller |
|---|---|
| Certification | CE, FCC, RoHS |
| Cloud Access | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Fan Quantity | Fanless |
| Installation | DIN-rail mounting; Wall mounting |
| Jumbo Frame (KB) | 15 |
| L2 Multicast | IGMP Snooping; IGMP v1/v2/v3 Snooping; Fast Leave |
| Mac Address Table | 8K |
| Omada App | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Operating Humidity (%) | 5 to 95 non-condensing |
| Operating Temperature (°C) | -40 to 75 |
| Operating Temperature (°F) | -40 to 167 |
| Packet Buffer Memory (Mbit) | 4 |
| Storage Humidity (%) | 5 to 95 non-condensing |
| Storage Temperature (°C) | -40 to 85 |
| Storage Temperature (°F) | -40 to 185 |
| Surge Protection (kV) | ±6 in common mode for Ethernet ports; ±4 in common mode for DC power input ports |
| Transmission Method | Store-And-Forward |
| VLAN | MTU VLAN; Port-Based VLAN; 802.1Q Tag VLAN; Maximum 32 VLAN Groups; 4K VID |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
PoE Ports (RJ45)• Standard: 802.3af/at/bt compliant
• PoE++ Ports (802.3af/at/bt PoE): 2 Ports, up to 60W per port
• PoE+ Ports (802.3af/at PoE): 6 Ports, up to 30W per port
• PoE Budget:
- 60W (Input: 12V / 7.2A - 21V / 3.7A))
- 120W (Input: 21V / 6.7A - 46V / 3.1A)
- 240W (Input: 46V / 5.7A - 57V / 4.4A)
Quality of Service
• 802.1p DSCP Priority
• 8 Priority Queues
• Priority Schedule Mode
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port-Based Rate Limit
• Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control
L2 Features
• Link Aggregation
- Static Link Aggregation
- Up to 4 aggregation groups and up to 6 ports per group
• Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
• Port Statistics
- Port Mirror Status
- Traffic Statistics
• 802.1ab LLDP
• Spanning Tree
- STP (802.1d)
- RSTP (802.1w)
Management Features
• Web-based GUI
• DHCP Client
• Cable Diagnostics
• Digital Diagnostic Monitoring (DDM)
• Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Unified Configuration†
