Wide differential pressure range from 50Pa to ± 5kPa. Switch function (NPN open collector). 1-5V analog output (standard). Loop check, display. Analog output scaling, filter, key lock, hold, zero adjustment function. Character Large LED display with a height of 10 mm (3 1/2 digits)
The compact body of 30 mm is equipped with display, output, and switch functions to save space in equipment. By adopting a compact and highly withstand voltage silicon capacitance sensor, highly sensitive and highly reliable measurement is possible.
* Cannot be used for corrosive gas, flammable gas, or liquid.

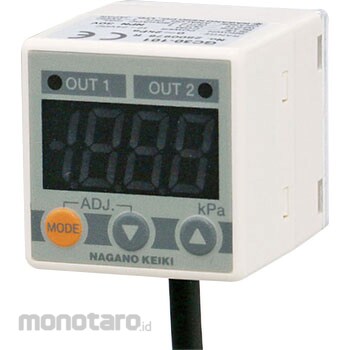

NAGANO KEIKI Small Digital Differential Pressure Gauge Model Number: GC30
#Grup produk P113803990
Sebelum PPN:
Rp7.099.900 - Rp7.599.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Accuracy | Differential pressure display accuracy: ± (1.0% FS + 1digit) at 23 °C (1kPa or more), ± (1.5% FS + 1digit) at 23 °C (200 ~ 500Pa), ± (2.0% FS + 1digit) at 23 °C ( (100Pa or less) |
|---|---|
| Case Structure | Indoor specification (IP40 IEC standard) |
| Comparator Output | NPN open collector x 2 outputs/output capacity 30 V DC 80 mA DC max. Response speed: 5 ms or less Dead band: Hysteresis mode variable, Window comparator mode: 1% FS fixed Operation indicator: Red LED (lights up when ON) |
| Display update cycle | 200ms |
| Measurable Fluid | gas |
| Power Supply | 12~24V DC ±10% |
| Type of Display | 3 1/2 digit LED digital display (character height 10 mm) |
| Type of Sign | Wall mounting |
