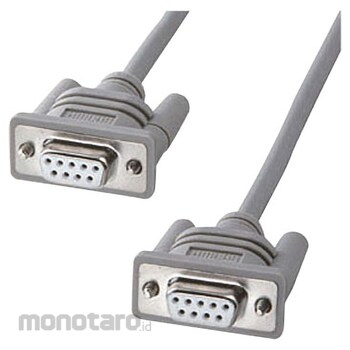

RS232C cable with D-sub 9pin cross connection.
A cable that connects the main units of a Windows-equipped (DOS / V) personal computer (D-sub 9pin) and transfers data.
A double shielded cable with a sealed aluminum shield inside the copper high-density braided shield material protects important data from most noise from low to high frequencies.
Since the inside is hardened with a resin mold and the entire surface is shielded, external interference is prevented and noise countermeasures are perfect. It also has excellent vibration resistance and impact resistance.
Uses gold-plated pins (contacts) that are resistant to rust and are less likely to cause signal deterioration due to aging.
It is a product that complies with the RoHS directive.
SANWA SUPPLY RS-232C Cable
#Grup produk P113517686
Spesifikasi
| Cable | Non-UL standard |
|---|---|
| Color | Light gray |
| Connector 1 | D-sub 9 pin |
| Connector 2 | D-sub 9 pin |
| Connector Shape | D-sub 9-pin female inch screw (4-40) - D-sub 9-pin female inch screw (4-40) |
| Conversion Type | Female - Female |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Shielding | Double shield |
| Suitable Models | PC with Windows (DOS / V) NEC PC98-NX series etc. * Model with D-sub9pin serial (RS-232C) port. |
| Terminal Connection | Cross connection |
