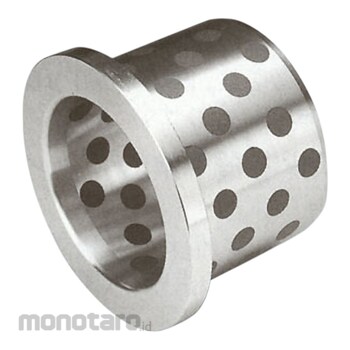

Oiles Corporation Flange Bushing #500SP

Operating temperature range (°C)
- No lubrication: -40 to +300,
- Regular lubrication: -40 to +150

Allowable PV value (N/mm 2 m/s) [kgf/cm 2 m/min]
- No lubrication: 1.65 [1010]
- Regular lubrication: 3.25 [1990]

Maximum allowable surface pressure P (N/mm 2 [kgf/cm 2 ])
- 29(98)[296(1000)]
() is the static allowable surface pressure

Maximum allowable speed V (m/s [m/min])
- No lubrication: 0.50 [30]
- Regular lubrication: 1.00 [60]

OILES #500SP1 is a heavy-duty oil-free bearing with a solid lubricant embedded in a high-strength brass alloy made with advanced casting technology. It can be used in combination with various solid lubricants depending on the conditions of use. It
can be used without oil.
It demonstrates high performance in areas with high loads and low speed operation.
It demonstrates excellent wear resistance in areas where it is difficult to form an oil film, such as with rotational, oscillating, reciprocating motion, and frequent starts and stops. It
has excellent chemical resistance and erosion resistance.
