Thin design with an outer diameter of Φ50 mm and a depth of 35 mm.
Protective structure that can be selected according to the usage environment.
The dust-proof and jet-proof type (IP65) is an aluminum die-cast case.
Wide resolution (1 to 2500 P / R).
Uses a robust Φ8mm stainless steel shaft.
Wide power supply voltage range of DC4.75 to 30V.
A servo mount that is convenient for adjusting the origin can be attached.

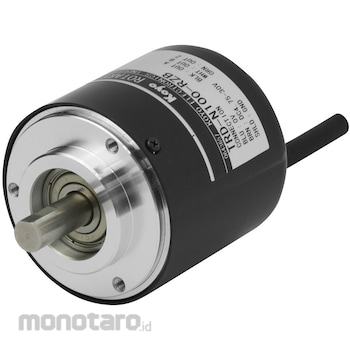

JTEKT Electronics (former Koyo Electronics Industries) Rotary encoder TRD-N
#Grup produk P112786784
Sebelum PPN:
Rp3.399.900 - Rp4.499.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Cable Length (m) | 0.5 (standard) |
|---|---|
| Classification | Series: Shaft type |
| Current Consumption (mA) | 60 or less (no load) |
| Length (mm) | 49 |
| Load voltage (V) | DC 35 or less (power supply) |
| Mass (g) | About 150 |
| Operation Mode | Totem pole output |
| Outer Diameter (φmm) | 50 |
| Output voltage (V) | H: ((power supply voltage)-2.5) or more, L: 0.4 or less |
| Power Supply Voltage (V) | DC4.75to30 |
| Protection Class | IP50 (dustproof) |
| Signal Format | Two-phase output type with origin (direct origin action) |
| Type | Rotary encoder |
| Withstand Voltage | For capacitor earth (between signal line and case) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Specification Rear cableUlasan Produk
