A full-scale multi-circuit energy monitor suitable for multiple circuits. This unit can measure three-phase, four-wire power distribution circuits. It supports rated input voltages up to 240/415V and can measure up to four circuits per system.
*Expansion units and units with different system types cannot be connected.
*Pulse signals cannot be measured with a three-phase, four-wire unit.
*Three-phase 4-wire units cannot be connected to the "Emit Full 2-wire Remote Control (Web Metering Compatible)" or "Network-Compatible Environmental Monitoring System." *If the delivery destination is a private residence (detached house or apartment building), the house name is required. Please note that delivery may not be possible if the house name is not provided.
*Delivery may not be possible in some areas. Please check the delivery status of your destination.

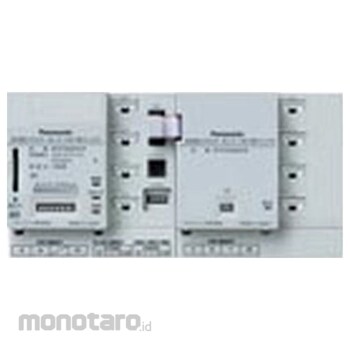

Panasonic Multi-circuit energy monitor, three-phase four-wire unit
#Grup produk P112549943
Spesifikasi
| Allowable Voltage Range (V) | 100-240 (-15%, + 10%) (shared with power supply) |
|---|---|
| Color | Gray |
| Communication Protocol | RS-485 2-wire / 4-wire |
| Conditions to Use | Temperature: -10 to +50°C, relative humidity: within 30 to 80% (no condensation) |
| Mass (g) | 550 *Does not include backup battery or SD memory card |
| Material | ABS |
| Power Outage Compensation Time | 200 |
| Power Supply | 100-240 50/60Hz |
| Rated Input Current (A) | 5, 5, 50, 100, 250, 400, 600 */5ACT is used in combination with a general-purpose CT with a secondary side rating of 5A, which must be prepared by the customer. |
| Rated Input Voltage (V) | 110/190,120/208,220/380,240/415 |
| Rated Power Consumption (W) | 10 |
| Type | 3-phase 4-wire unit |
| Type of Terminal Fitting | IEC rail, articulated mounting plate, screw fastening |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SpecificationCT cable: 1, 2, 5, 10, 20, 30, 50m, pulse input cable: 2m (total extension distance possible up to 100m)
