Plan UC Achromat Series:
Plan UC 4X/0.1, W.D=30.5mm,CG=0.17; Plan UC 10X/0.25, W.D=17.4mm,CG=0.17; Plan UC 20X/0.45,W.D=0.8mm,CG=0.17)(Optional); Plan UC 40X/0.65,W.D=0.6mm,CG=0.17 ; Plan UC 60X/0.8,W.D=0.35mm,CG=0.17)(Optional) ; Plan UC 100X/1.25 Oil,W.D=0.16mm,CG=0.17; Plan UC 100X/0.8,W.D=2mm,CG=0.17

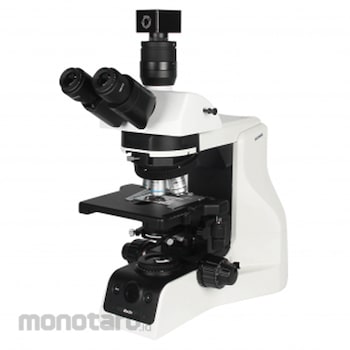

Motic Microscope PA Series
#Grup produk P112454751
Spesifikasi
| Coarse Focusing (mm/turn) | 17.7 |
|---|---|
| Condenser | Abbe Condenser |
| Eyepieces | Wide-Field(FN23) Eyepiece 10X/23mm, Diopter adjustable; Wide-Field(FN25) Eyepiece 10X/25mm, Diopter adjustable |
| Fine Focusing | 0.1/turn |
| Focus Mechanism | Upper limit stopper, Torque adjustment ring |
| HPlan S-APO Series | HPlan S-APO 4X/0.13,W.D=17.3mm,CG=0.17; HPlan S-APO 10X/0.3,W.D=11.7mm,CG=0.17; HPlan S-APO 20X/0.5,W.D=2.2mm,CG=0.17; HPlan S-APO 40X/0.75,W.D=0.7mm,CG=0.17; HPlan S-APO 100X/1.3 oil,W.D=0.1mm,CG=0.17 |
| Illumination | Transmitted Illumination System |
| Observation Tube (°) | 30 Trinocular (100:0,20:80,0:100) |
| Optical System | Scalable Infinity-Corrected Optical System(CCIS) |
| Plan APO Series | Plan APO 4X/0.15 W.D.=20mm,CG=0.17 ; Plan APO 10X/0.35 W.D.=4.2mm,CG=0.17; Plan APO 20X/0.75 W.D.=0.55mm,CG=0.17; Plan APO 40X/0.95 W.D.=0.18mm,CG=0.17; Plan APO 100X/1.3 oil. W.D.=0.25mm,CG=0.17 |
| Plan UC Phase Contract Series | Plan UC PH 10X/0.25, W.D=17.4mm,CG=0.17,ph1; Plan UC PH 20X/0.45,W.D=0.8mm,CG=0.17,ph2; Plan UC PH 40X/0.65,W.D=0.6mm,CG=0.17,ph2; Plan UC PH 100X/1.25 Oil,W.D=0.16mm,CG=0.17,ph3 |
| Recommended Objectives | Recommended Objectives |
| Software | Motic Images Plus 3.0 (Best Paired with Moticam S Line Cameras) |
| Stage | Rackless Stage |
| Stage Z Range (mm) | 29.5 |
| Transmitted Illumination | Kohler Illumination 100W Long Life Halogen Lamp |
