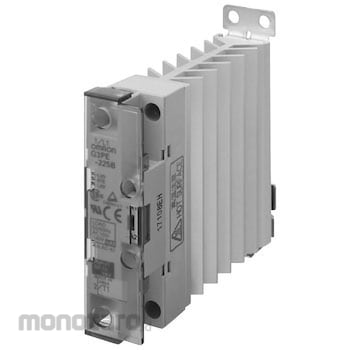

OMRON Solid State Relay G3PE for Heater
#Grup produk P112446655
Spesifikasi
| Ambient Humidity to Use (%RH) | 45~85 |
|---|---|
| Current Square Product (I²t) (A²s) | 260 (reference value) |
| Equipped with / without Zero Cross Function | Included |
| Input Current (mA) | 7 or less |
| Insulation Resistance (MΩ) | 100 or more (at 500V mega) |
| Leakage Current (mA) | 10 or less (at 200 VAC) |
| Load Capacity | 5kW (at 200V AC) (resistance load) |
| Load current (A) | 0.1 to 25 (at 40°C) |
| Load voltage (V) | AC75~264(50/60Hz) |
| Number of Phases | Single-phase |
| Operating Time (ms) | 1/2 cycle of load power supply + 1 or less |
| Operating Voltage Range (V) | DC9.6~30 |
| Operation Indicator Lamp | Yes (yellow) |
| Protection Class | IP20 |
| Rated Input Voltage (V) | DC12~24 |
| Rated Load Voltage (V) | AC100~240 (50/60Hz) |
| Return Time (ms) | 1/2 cycle of load power supply + 1 or less |
| Return Voltage (V) | DC1.0 or more |
| Shock (m/s²) | 294 (DIN rail mounting) |
| Standard | Certification Standards; UL (File No. E64562), CSA (File No. LR35535), TUV (File No. R50124433, EN60947-4-3) |
| Storage Temperature Range (°C) | -30 to +100 (with no icing or condensation) |
| Suitable Load of Output | 25A AC100~240V |
| Surge-on Current Capability (A) | 220A (60Hz, 1 cycle |
| Terminal Structure | Screw terminal |
| Type | Solid state/relay |
| Type of Insulation | Photo triac coupler |
| Vibration | 10 to 55 to 10Hz Single amplitude 0.375mm (Double amplitude 0.75mm) (DIN rail mounting) |
| Voltage Drop when Output Turned ON | 1.6V (RMS) or less |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
The small, slim type surge path function integrated with the radiator improves the surge voltage resistance of the output circuit.Obtained UL, CSA and EN standards (Tü; V certification).
