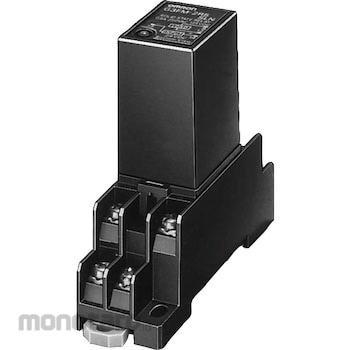

OMRON Power MOS FET Relay G3FM
#Grup produk P112443490
Spesifikasi
| Input Impedance (ohm) | 1.2k±20% |
|---|---|
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Leakage Current (mA) | 0.1 or less (at 200 VAC) |
| Load current (mA) | 1 to 500 (at 40°C) |
| Load voltage (V) | AC19.2~264, DC19.2~125 |
| Operating Ambient Humidity (%RH) | 45~85 |
| Operating Voltage Range (V) | DC19.2~28.8 |
| Operation Indicator Lamp | Yes |
| Product Type | Relay same shape |
| Rated Input Voltage (V) | DC24 |
| Rated Load Voltage (V) | DC24~110 AC24~240 |
| Rated Voltage (V) | DC24 |
| Return Time (ms) | less than 10 |
| Return Voltage (V) | DC1 or more |
| Shock Resistance (m/s²) | 1000 |
| Storage Temperature (°C) | -30 to +100 (with no icing or condensation) |
| Suitable Load of Output | 0.5A AC24~240V, DC24~110V |
| Surge-on Current Capability (A) | 6(10ms) |
| Terminal Structure | Plug-in terminal |
| Type | Power relay |
| Type of Insulation | Photo-bol coupler |
| Vibration Resistance (Hz) | 10~55~10, single amplitude 0.75 mm (double amplitude 1.5 mm) |
| Voltage Drop when Output Turned ON | 3V (RMS) or less |
| Voltage Rating (V) | DC19.2 or lower |
| Withstand Voltage (V/minute) | AC1500 50/60Hz |
| Zero Cross Function | None |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
SSR for opening and closing a minute load that does not require a bleeder resistor and has a leakage current of 100 μA or less.Same dimensions as shape MY (2-pole type).
Solid-state relay for opening and closing a small load of 1 to 500mA.
AC / DC shared opening and closing, DC opening and closing is non-polar.
It can be opened and closed in a wide range of AC19.2 to 264V and DC19.2 to 125V.
AC full-wave rectified load and half-wave rectified load can be opened and closed.
With operation indicator lamp. You can check the input status to SSR at a glance.
The shape MY can be opened and closed directly (no bleeder resistance required).
The built-in varistor has an excellent effect of absorbing external surges.
Use
For minute load control, valve, solenoidUlasan Produk
