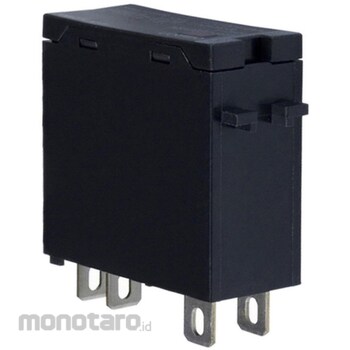

OMRON I/O Solid State Relay G3R-I/O
#Grup produk P112440934
Spesifikasi
| Equipped with / without Zero Cross Function | Included |
|---|---|
| Input Current (mA) | 15 or less (at 25°C) |
| Insulation Resistance (MΩ) | Between input and output: 100 or more |
| Leakage Current (mA) | 1.5 or less |
| Load current (A) | 0.05 to 2 (Minimum current value is 10°C or more) |
| Load voltage (V) | AC75~264 |
| Module | Output module |
| Operating Temperature Range (°C) | -30 to 80 (no condensation or freezing) |
| Operating Time (ms) | Less than 1/2 cycle of the load power supply period1 |
| Operating Voltage Range (V) | DC4~32 |
| Operation Indicator Lamp | Yes |
| Output Current (mA) | 2000 |
| Rated Voltage (V) | Input: 5 to 24 DC / Output: 100 to 240 AC |
| Response Frequency (Hz) | 20 |
| Response Speed | High speed type |
| Return Time (ms) | Less than 1/2 cycle of the load power supply period1 |
| Return Voltage (V) | DC1 or more |
| Shock (m/s²) | 1000 |
| Standard | Obtained UL, CSA, EN (TUV certification) standards |
| Storage Temperature (°C) | -30 to 100 (no condensation or freezing) |
| Surge-on Current Capability (A) | 30 (60Hz, 1 cycle) |
| Type | Solid state/relay |
| Type of Insulation | Photo triac |
| Vibration | 10 to 55 to 10 Hz, single amplitude 0.75 mm (double amplitude 1.5 mm) |
| Vibration Resistance (Hz) | 10~55~10, single amplitude 0.75 mm (double amplitude 1.5 mm) |
| Voltage Drop when Output Turned ON | 1.6V or less |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
I / O solid-state relay that can be mounted on the OMRON G70A I / O terminal, which has the same shape as the SSR type G2R-1-S power relay of the plug-in terminal.Assortment of input modules and output modules.
Tü; V certified products are also available (-UTU type).
