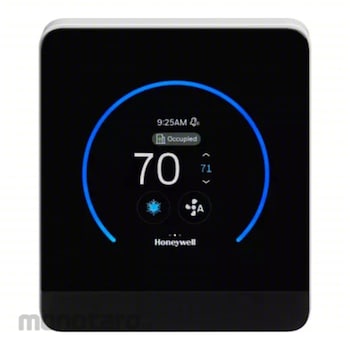

HONEYWELL Thermostat Controller
#Grup produk P112411941
Spesifikasi
| Amperage (A) | 4 |
|---|---|
| Application | Heat or Cool |
| Backlit Screen | Yes |
| Changeover Type | Automatic |
| Compatible System Type | 1H/1C Conventional Heat Pump; 2-Pipe Fan Coil Unit; 2H/1C Heat Pump; Water Source Heat Pump; 4-Pipe Fan Coil Unit |
| Compatible with Building Automation Systems | Yes |
| Contact Rating (V) | 20 to 30 AC |
| Control Type | Touch Screen |
| Dehumidification Control | Yes |
| Display Type | Digital |
| Electrical Connection Type | Hardwired |
| Enclosure Color | Gray |
| Fan Settings | Hi-Med-Low |
| Frequency (Hz) | 50; 60 |
| Housing Color | Gray |
| Humidification Control | Yes |
| Humidification/Dehumidification Control | Yes, Yes |
| Key Features | FCU Dehumidification with Reheat Option; Hybrid Changeover Mode; On/Off, Floating, Modulating, or 6-Way Valves; Remote Control and Monitoring Via Mobile User App (wireless Variants) |
| Maximum Operating Humidity (%) | 90 |
| Maximum Operating Temperature (°F) | 122 |
| Maximum Temperature Control (°F) | 122 |
| Minimum Operating Humidity (%) | 10 |
| Minimum Operating Temperature (°F) | 32 |
| Mounting Location | Wall |
| Network Protocol Compatibility | BACnet MS/TP; MODBUS/BACnet IP |
| Number of Cooling Stages - Conventional System | 1 |
| Number of Cooling Stages - Heat Pump System | 1 |
| Number of Heating Stages - Conventional System | 1 |
| Number of Heating Stages - Heat Pump System | 2 |
| Number of Pipes | 2; 4 |
| Number of Relay Inputs | 5 |
| Number of Relay Inputs/Outputs | 3 DO/2 DIO/3 UIO |
| Number of Relay Outputs | 8 |
| Occupancy Sensor | Includes Dry Contact Occupancy Sensor |
| Overall Depth (inch) | 1 |
| Overall Height (inch) | 4-1/2 |
| Overall Width (inch) | 3-15/16 |
| Programming Capability | Fully Customizable |
| Sensor Type | 3 Custom Sensors; Discharge Air Temperature; Drain Pan; Humidity; Occupancy; Outdoor Air Temperature; Proof of Airflow; Proof of Water Flow; Shutdown Sensor; Space Temperature |
| Standards | CE; FCC; ICES; Prop65; REACH; RoHS; UK; UL/cUL |
| System Settings | Auto-Heat-Cool-Off |
| Temperature Adjustment | On/Off (Cool); On/Off (Heat) |
| Temperature Differential (°F) | +/-1.5 |
| Temperature Limiting | Yes |
| Temperature Scale | Celsius; Fahrenheit |
| Temperature Sensitivity (°F) | +/-1.5 |
| Terminal Designations | C; COM; DIO1; DIO2; DO1; DO2; DO3; R; UIO1; UIO2; UIO3 |
| Thermostat Type | Commercial Thermostat |
| UNSPSC | 31160000 |
| Voltage (V) | 24 |
| Wireless | No |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These thermostat controls are field-selectable for communication with BACnet MS/TP (Building Automation and Control Networks Master Slave/Token Passing) or BACnet IP (Building Automation and Control Networks Internet Protocol) systems that communicate with multiple devices across building automation systems. Users can select which protocol to use in the field. IP protocols are faster and more reliable than BACnet MS/TP systems and easier to troubleshoot. These thermostat controls are compatible with both protocols, simplifying upgrades between systems without changing hardware. They can also be used for standalone, noncommunicating applications. These thermostat controls provide remote monitoring and programmable temperature control for common HVAC equipment in commercial buildings.
